PRORUN Pulley Instruction Manual

1. Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your PRORUN Pulley. Please read these instructions carefully before attempting to install or use the product to ensure safe and efficient performance. This pulley is designed as a replacement part for specific PRORUN outdoor power equipment models.

2. Producte acabatview

The PRORUN Pulley is a critical component within the cutterhead assembly of compatible PRORUN outdoor power tools. Its primary function is to transmit power efficiently, ensuring the proper rotation and operation of the cutting mechanism. This pulley is manufactured to meet the specifications required for reliable performance in demanding applications.

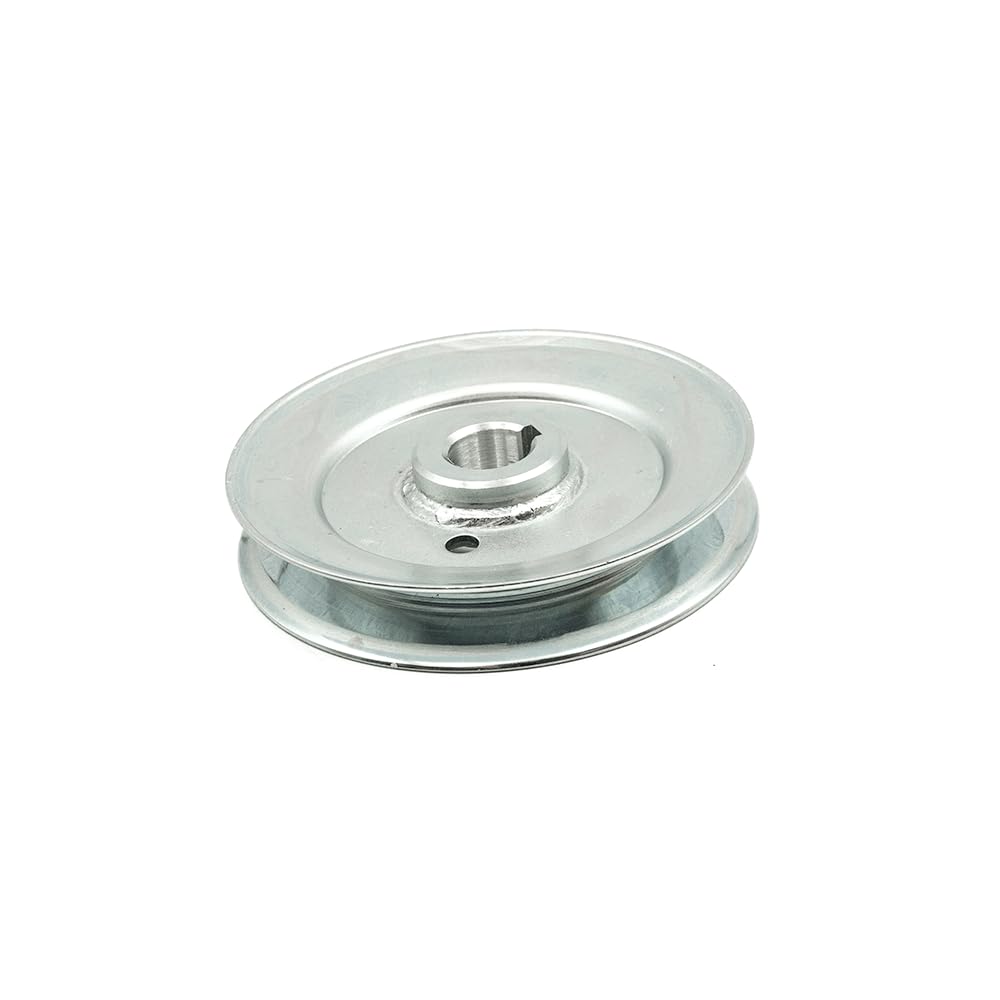

Figura 1: PRORUN Pulley. This image shows the metal pulley component, featuring a central bore for shaft mounting and a grooved circumference designed to accommodate a drive belt. It is a key part of the power transmission system in compatible equipment.

Compatibilitat: This pulley is specifically designed for use with the following PRORUN models:

• PLT42SH
• PBLT1942H
• PCT42SH
• PCT42M
• PLT42SHB16
• PLT42LH1
• PBL1942HB

3. Configuració i instal·lació

Installation of the PRORUN Pulley should only be performed by individuals with appropriate mechanical knowledge and tools. Always ensure the equipment is turned off, disconnected from any power source, and cooled down before beginning any maintenance or installation procedures.

1. La seguretat primer: Utilitzeu equips de protecció individual adequats, inclosos guants i protecció ocular.
2. Access the Cutterhead Assembly: Refer to your specific equipment's service manual for instructions on how to safely access the cutterhead assembly where the pulley is located. This may involve removing guards or covers.
3. Remove Old Pulley: Carefully remove the worn or damaged pulley. Note the orientation and any washers or spacers for correct reassembly. Specialized tools may be required to remove retaining clips or bolts.
4. Inspeccionar components: Before installing the new pulley, inspect the shaft, bearings, and belt for any signs of wear or damage. Replace any compromised components as necessary.
5. Install New Pulley: Place the new PRORUN Pulley onto the shaft, ensuring it is correctly seated and aligned. Reinstall any washers, spacers, and retaining hardware in the correct order and tighten to the manufacturer's specified torque.
6. Reinstall Belt: Route the drive belt around the new pulley and any other associated pulleys, ensuring proper tension.
7. Remuntar l'equipament: Reattach all guards and covers that were removed. Ensure all fasteners are secure.
8. Prova de funcionament: After reassembly, perform a brief test run of the equipment in a safe environment to confirm proper function and alignment of the pulley and belt.

Nota: Incorrect installation can lead to equipment malfunction, premature wear, or personal injury. If you are unsure about any step, consult a qualified service technician.

4. Consideracions operatives

Once installed, the PRORUN Pulley operates as an integral part of your equipment's power transmission system. No direct user operation of the pulley itself is required beyond ensuring the overall equipment is used according to its own operating manual.

• Funcionament normal: The pulley will rotate with the drive shaft, transferring power via the drive belt to the cutting mechanism.
• Escolta els sorolls anormals: During operation, pay attention to any unusual noises, such as squealing, grinding, or rattling, which could indicate a problem with the pulley, belt, or bearings.
• Eviteu la sobrecàrrega: Operating the equipment beyond its intended capacity can put excessive strain on the pulley and other components, leading to premature failure.

5. Manteniment

Regular inspection and maintenance of the PRORUN Pulley and associated components are crucial for extending the lifespan of your equipment and ensuring safe operation.

• Inspecció visual: Periodically inspect the pulley for signs of wear, cracks, chips, or deformation. Check the belt groove for debris or excessive wear.
• Estat del cinturó: Examine the drive belt for fraying, cracking, glazing, or stretching. A worn belt can cause slippage and reduce efficiency. Replace the belt if it shows signs of significant wear.
• Comprovació del rodament: If the pulley incorporates a bearing, check for smooth rotation and absence of excessive play or noise. Bearings are typically sealed and do not require lubrication.
• Neteja: Keep the pulley and surrounding area free from grass clippings, dirt, and other debris that can interfere with proper belt seating and cause wear.
• Substitució: Replace the pulley if any significant damage or wear is observed. Using a damaged pulley can lead to further equipment damage or operational hazards.

6. Solució De Problemes

This section addresses common issues that may arise related to the pulley's function.

7. Especificacions

The following specifications apply to the PRORUN Pulley:

8. Garantia i Suport

For information regarding product warranty, returns, or technical support, please refer to the official PRORUN website or contact PRORUN customer service directly. Specific warranty terms and conditions may vary and are typically provided with the original equipment or on the manufacturer's official channels.

PRORUN Customer Support: Si us plau, visiteu el PRORUN Store on Amazon or the official PRORUN weblloc web per obtenir dades de contacte i més ajuda.
