Midea MRT18D3BWW 18 Cu. Ft. Top Freezer Refrigerator User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Midea MRT18D3BWW 18 Cu. Ft. Top Freezer Refrigerator. Please read these instructions thoroughly before using your appliance and retain them for future reference.

2. Informació important de seguretat

Per reduir el risc d'incendi, descàrrega elèctrica o lesions en utilitzar la nevera, seguiu aquestes precaucions bàsiques:

• Assegureu-vos que la nevera estigui correctament connectada a terra.
• No utilitzeu aparells elèctrics dins dels compartiments d’emmagatzematge d’aliments tret que siguin del tipus recomanat pel fabricant.
• Desendolleu la nevera abans de netejar-la o fer-ne cap manteniment.
• Mantenir les obertures de ventilació lliures d'obstruccions.
• No danyeu el circuit de refrigerant.
• Aquest aparell està dissenyat només per a ús domèstic.

3. Producte acabatview

The Midea MRT18D3BWW is an 18 cubic foot top freezer refrigerator designed for reliable performance. It features a garage-ready design, ensuring stable cooling in ambient temperatures ranging from 38°F to 110°F (3°C to 43°C).

Figura 3.1: global view of the Midea MRT18D3BWW refrigerator with the top freezer door open, revealing the empty interior.

4. Configuració i instal·lació

Your Midea MRT18D3BWW refrigerator is designed for freestanding installation only. Follow these steps for proper setup:

1. Desembalatge: Traieu tots els materials d'embalatge, inclosa l'escuma i la cinta adhesiva.
2. Col·locació: Position the refrigerator on a flat, stable surface. Ensure adequate clearance around the appliance for proper ventilation.
3. Nivell: Adjust the leveling legs at the bottom of the refrigerator to ensure it is stable and level. This helps prevent vibrations and ensures proper door closure.
4. Connexió d'alimentació: Plug the refrigerator into a dedicated, grounded electrical outlet. Do not use extension cords.
5. Refredament inicial: Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. Once plugged in, allow it to cool for several hours before loading food.

5. Característiques clau

This refrigerator is equipped with several features designed for convenience and optimal food preservation:

• Garage Ready: Engineered to perform efficiently in a wide range of ambient temperatures, making it suitable for garage environments.
• Capacitat de 18 peus cúbics: Proporciona ample storage space for groceries.
• Gallon-Sized Door Bins: Conveniently store large beverage containers in the refrigerator door.
• Prestatges ajustables: Customize the interior layout to accommodate items of various sizes.

Figure 5.1: Refrigerator interior showcasing various food items and beverages, highlighting the storage capacity and organization.

• Calaixos per a cuinar: Dedicated drawers for fruits and vegetables, often with humidity control to extend freshness.

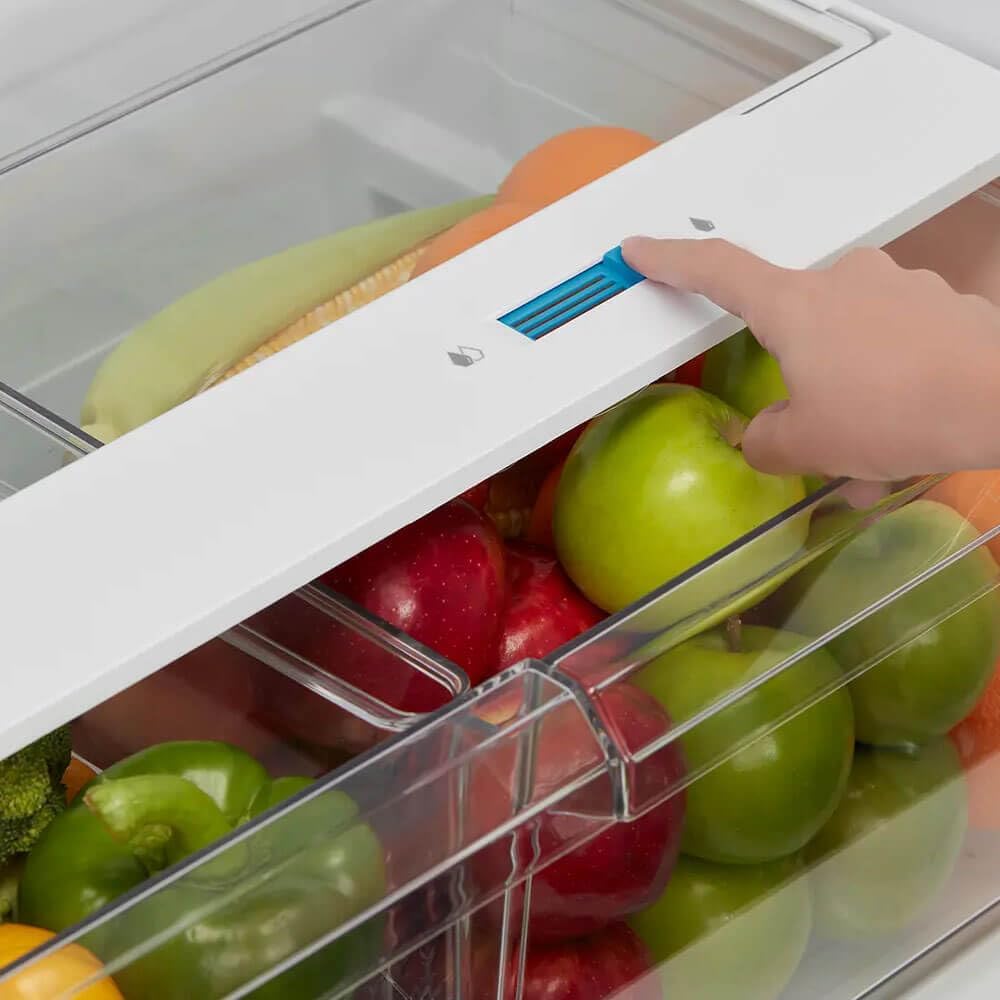

Figure 5.2: A hand adjusting the humidity control slider on a crisper drawer, demonstrating the feature for fresh produce.

• Frost-Free Defrost: Automatically prevents ice buildup in the freezer, eliminating the need for manual defrosting.
• Pany: Provides security for the contents of the refrigerator.
• Il·luminació interior LED: Bright and energy-efficient lighting illuminates the refrigerator compartment.

Figura 5.3: Un primer pla view of the interior LED light panel, providing clear illumination inside the refrigerator.

6. Instruccions de funcionament

6.1. Control de temperatura

The refrigerator and freezer temperatures are controlled by a single thermostat located inside the fresh food compartment. To adjust the temperature:

1. Locate the temperature control dial, typically found near the top of the fresh food compartment.
2. Turn the dial to your desired setting. 'COLD' is generally the warmest setting, while 'COLDEST' provides maximum cooling. A 'RECOMMENDED' setting is often indicated for optimal performance.
3. Espereu unes hores perquè la temperatura s'estabilitzi després de fer els ajustos.

Figure 6.1: A hand interacting with the electronic temperature control panel, showing options for 'COLD', 'COLDER', 'COLDEST', and 'RECOMMENDED' settings.

6.2. Pautes d'emmagatzematge d'aliments

• Store raw meats and poultry on the lowest shelf to prevent drips onto other foods.
• Keep dairy products, eggs, and leftovers on middle shelves.
• Use crisper drawers for fruits and vegetables.
• Ensure all food is properly sealed to maintain freshness and prevent odor transfer.

7. Manteniment i cura

7.1. Cleaning Your Refrigerator

Regular cleaning helps maintain the appearance and efficiency of your refrigerator:

1. Exterior: Wipe surfaces with a soft cloth and mild detergent. For stainless steel finishes, use a stainless steel cleaner.
2. Interior: Remove all food items and shelves. Wash interior surfaces with a solution of warm water and baking soda (2 tablespoons baking soda to 1 quart water). Rinse and dry thoroughly.
3. Juntes de la porta: Netegeu les juntes de les portes regularment per assegurar-ne un segellat hermètic.

7.2. Frost-Free System

Your refrigerator features a frost-free system, meaning manual defrosting is not required. If you notice excessive frost buildup, ensure the door is sealing properly and the temperature settings are correct.

8. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, review this section for common issues and their solutions:

• La nevera no refreda: Check if the power cord is securely plugged in, the circuit breaker is not tripped, and the temperature control is set correctly.
• Soroll excessiu: Ensure the refrigerator is level and not touching a wall or other appliance. Normal operating sounds include compressor hum and refrigerant flow.
• Water on Floor: Check if the drain pan is correctly positioned and not overflowing. Ensure the refrigerator is level.
• La porta no tanca correctament: Verify that no food packages are obstructing the door and that the door gaskets are clean and intact.

9. Especificacions

10. Garantia i Suport

For detailed warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Midea website. The included user manual contains additional information and contact details for service inquiries.
