Introducció
This manual provides essential instructions for the safe assembly, operation, and maintenance of your PawHut Outdoor Catio Cat Enclosure, Model D32-037V00GY. Please read this manual thoroughly before assembly and retain it for future reference. This catio is designed to provide a secure and stimulating outdoor environment for your cats.
Instruccions de seguretat
- Always assemble the catio on a flat, stable surface.
- Assegureu-vos que tots els cargols i elements de fixació estiguin ben ajustats abans d'utilitzar-los. Comproveu periòdicament si hi ha connexions soltes.
- This catio is designed for cats. Do not allow children or other animals to climb or play inside unsupervised.
- Position the catio against a sturdy structure, such as a house wall, as the back is open.
- Regularly inspect the structure for any damage, wear, or loose parts. Repair or replace as necessary.
- Do not overload the jumping platforms; the maximum load capacity is 22 lbs.
- Ensure proper ventilation within the enclosure, especially during warm weather.
- Keep the catio clean to maintain a hygienic environment for your pets.
Llista de peces
Before beginning assembly, verify that all components are present and undamaged. Refer to the included hardware and panel diagrams for specific part identification.
- Wooden frame panels (various sizes)
- Panells de malla metàl·lica
- Jumping platforms (6 units)
- Ramps (2 unitats)
- Scratching post (1 unit)
- Waterproof PC board roof panels
- Hardware kit (screws, L-shaped metal brackets, expansion screws, hinges, latches)
- Llibret d'instruccions de muntatge
Muntatge i muntatge
Assembly typically requires two people. Lay out all panels and hardware in an organized manner before starting. A drill, an offset ratcheting screwdriver, and wood glue are recommended tools for easier assembly.
- Desempaquetar i identificar les peces: Carefully unpack all components. Match each part to the diagrams in the assembly instructions.
- Muntar el marc base: Connect the bottom frame pieces according to the instructions, ensuring they are square and stable.
- Attach Side and Front Panels: Securely attach the side and front mesh panels to the base frame using the provided screws and L-shaped metal brackets. Pay close attention to the orientation of panels with doors.
- Install Internal Platforms and Ramps: Mount the jumping platforms and ramps at the designated heights. Ensure they are level and firmly attached to support your cats' weight.
- Install Scratching Post: Secure the scratching post in its intended location.
- Fixar el sostre: Position and secure the waterproof PC board roof panels. Ensure proper overlap for weather resistance.
- Secure to Structure: The catio is designed to stand against a building. For enhanced stability, consider using additional metal brackets or braces to secure it to your house or a sturdy outdoor structure.
- Inspecció final: Double-check all connections for tightness and stability. Ensure all doors latch securely.
Image: The fully assembled PawHut Outdoor Catio Cat Enclosure, showing its multi-level design and integration with a home exterior.
Image: Detailed dimensions of the PawHut Outdoor Catio Cat Enclosure, including height, width, and depth measurements.
Instruccions de funcionament
This catio provides a safe outdoor space for your cats to explore and relax.
- Cat Access: Use the large front door or the two side doors to allow your cats to enter and exit the enclosure. Ensure doors are securely latched when cats are inside.
- Enriquiment: The six jumping platforms, two ramps, and scratching post are designed for your cats' activity and enjoyment. Encourage them to use these features.
- Col·locació: Position the catio near a window or sliding door for easy access from your home, if desired.

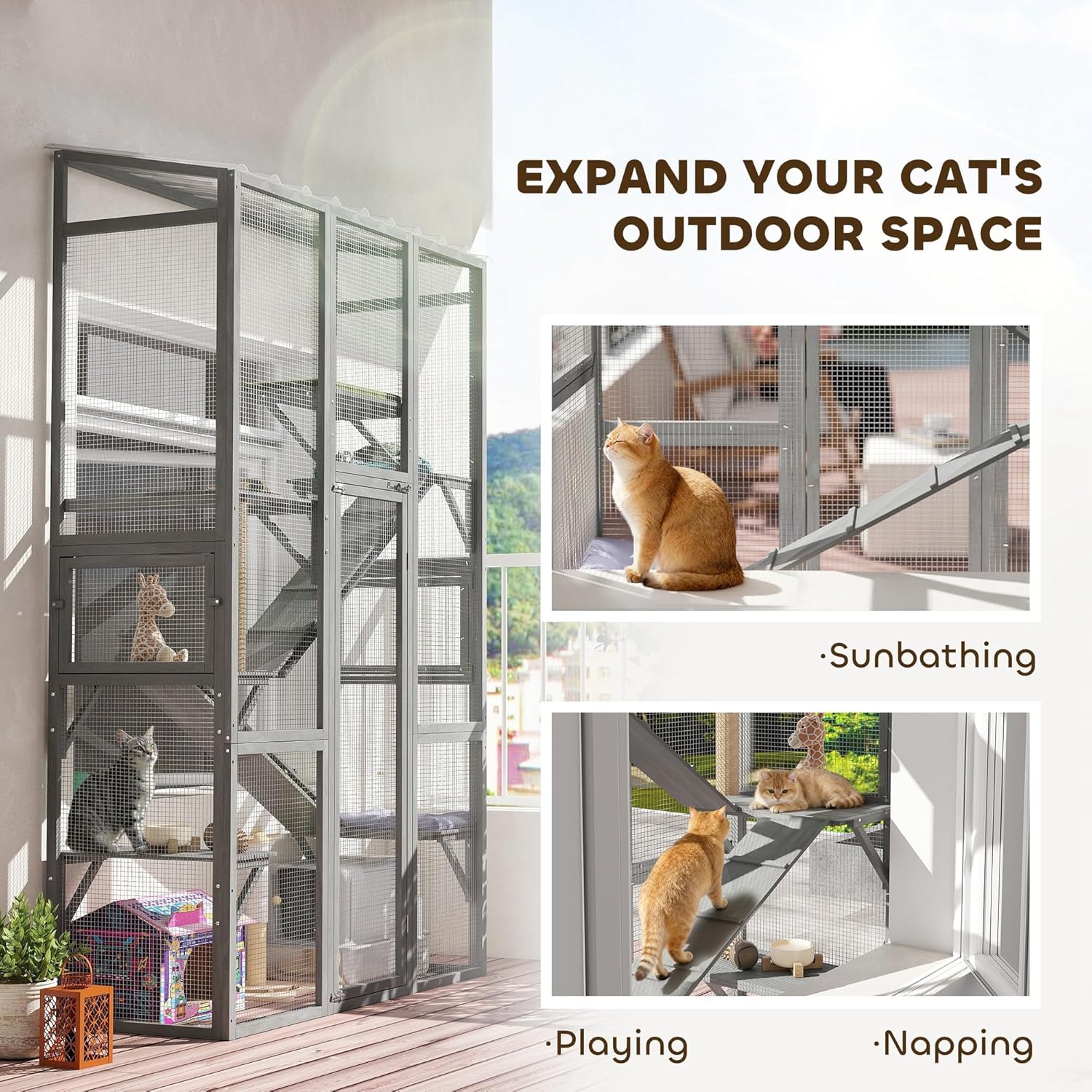

Image: Cats utilizing the various levels and spaces within the catio for sunbathing, playing, and napping, highlighting the enclosure's versatility.
Imatge: Un primer pla view of the catio's interior, showcasing the jumping platforms, scratching post, and ramps designed for cat activity.
Image: Illustration of the catio's access points, including a large front door and two side doors for convenient entry and exit.
Manteniment
- Neteja: Regularly clean the catio using pet-safe cleaning solutions. The large doors facilitate easy access for cleaning.
- Integritat estructural: Periodically check all wooden components for signs of wear, rot, or damage. Inspect metal mesh for any breaks or sharp edges.
- Elements de fixació: Ensure all screws, bolts, and latches remain tight. Re-tighten as needed to maintain stability.
- Manteniment del sostre: Inspect the waterproof PC board roof for cracks or leaks, especially after severe weather.
- Scratching Post: Replace the scratching post material if it becomes excessively worn.
Image: A close-up of the catio's waterproof PC board roof, designed to provide protection from weather elements for outdoor use.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Catio feels unstable or wobbly. | Loose fasteners; uneven assembly surface; not secured to a wall. | Ensure all screws are tightened. Assemble on a level surface. Secure the catio to a sturdy wall or structure using appropriate anchors. |
| Les portes no tanquen ni es tanquen correctament. | Misaligned hinges; bent latch components; frame distortion. | Check hinge alignment and adjust if necessary. Straighten or replace bent latch parts. Ensure the frame is square. |
| Fuita d'aigua de la teulada. | Improper roof panel installation; damaged roof panel. | Verify roof panels are correctly overlapped and sealed. Inspect for cracks and replace damaged panels. |
| Cats are not using platforms/ramps. | Unfamiliarity; platforms feel unstable. | Encourage use with treats or toys. Ensure platforms are secure and do not flex excessively. |
Especificacions
- Model: D32-037V00GY
- Marca: PawHut
- Dimensions del producte (L x A x A): 63.8" x 24.2" x 99.2" (162 cm x 61.5 cm x 252 cm)
- Pes de l'article: 56 lliures (25.4 kg)
- Material: Fir wood, Metal mesh, PC board (roof)
- Color: Gris
- Nombre de nivells: 6 (jumping platforms)
- Maximum Load per Platform: 22 lliures (10 kg)
- Recomanat per a: 2-3 cats
- Característiques: Multi-level design, Secure enclosure, Weather-resistant roof, Scratching post, Ramps
- Fabricant: Aosom LLC
Garantia i Suport
This PawHut Outdoor Catio Cat Enclosure (Model D32-037V00GY) comes with a 1 any de garantia contra defectes de fabricant. For warranty claims, technical support, or replacement parts, please contact Aosom LLC customer service. Retain your proof of purchase for warranty validation.
Fabricant: Aosom LLC
Please refer to the contact information provided at the point of purchase or on the manufacturer's official weblloc web per obtenir els detalls d'assistència més actualitzats.
