Introducció
The VILTROX TCL-X100 VI Tele Conversion Lens is designed to extend the focal length of compatible Fujifilm X100 series cameras by approximately 1.4x. This converts the camera's fixed focal length to a 50mm equivalent (35mm format), ideal for portraits and detailed close-up photography. It maintains premium picture quality without altering the F-stop value and features an optical design that effectively controls distortion, chromatic aberration, and flare.
This manual provides essential information for the proper setup, operation, and maintenance of your VILTROX TCL-X100 VI Tele Conversion Lens.
Contingut del paquet
En obrir el paquet, comproveu que tots els elements hi siguin presents i que estiguin en bon estat:
- VILTROX TCL-X100 VI Tele Conversion Lens
- Tap de l'objectiu frontal
- Tap de la lent posterior
- Bossa de lent
- Manual d'instruccions (aquest document)
- Targeta de garantia
Image: Package contents of the VILTROX TCL-X100 VI Tele Conversion Lens.
Video: Unboxing the VILTROX TCL-X100 VI Tele Conversion Lens and its accessories.
Configuració
Attaching the Tele Conversion Lens
- Ensure your Fujifilm X100 series camera is powered off.
- Remove the front ring from your camera's lens barrel by twisting it counter-clockwise.
- Align the VILTROX TCL-X100 VI Tele Conversion Lens with the camera's lens barrel.
- Gently screw the tele conversion lens onto the camera's lens barrel clockwise until it is securely fastened. Do not overtighten.
- Remove the front and rear caps from the newly attached tele conversion lens.

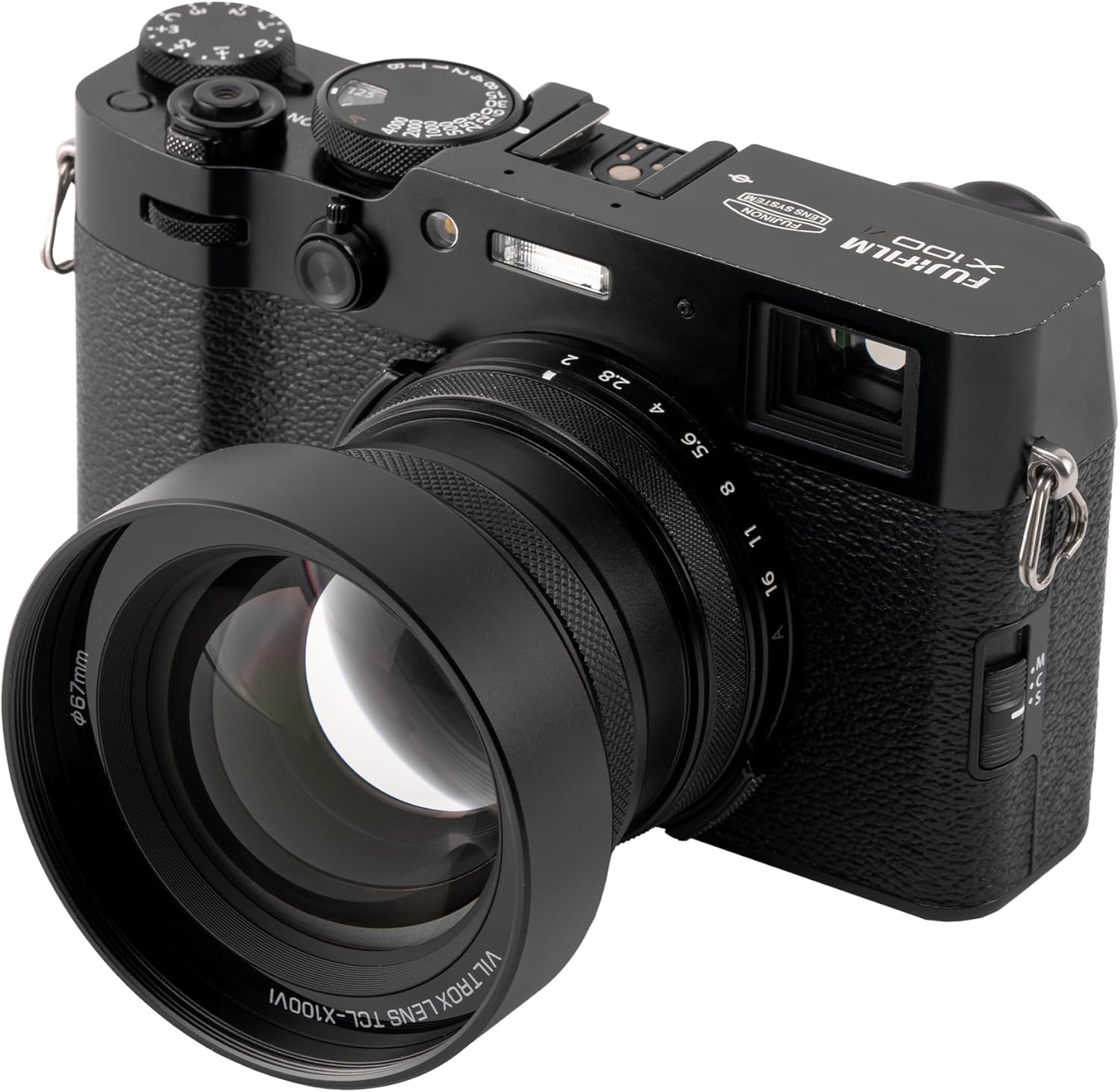

Image: The tele conversion lens mounted on a Fujifilm X100 camera.
Video: Demonstration of attaching the VILTROX TCL-X100 VI Tele Conversion Lens to a Fujifilm X100 camera.
Configuració de la càmera
The VILTROX TCL-X100 VI features automatic recognition on Fujifilm X100F, X100V, and X100VI models. The camera will automatically optimize settings and correct aberrations when the lens is attached.
For older models (Fujifilm X100, X100S), you must manually switch the additional lens settings via the camera's menu. Refer to your camera's user manual for specific instructions on how to access and adjust these settings.
Funcionament de la lent
Focal Length Extension
This tele conversion lens extends the camera's native 35mm equivalent focal length by approximately 1.4x, resulting in a 50mm equivalent focal length. This is particularly useful for:
- Retrats: Achieve a more compressed perspective and pleasindesenfocament de fons g.
- Detailed Close-ups: Capture subjects with greater magnification and detail from a distance.
Image: Visual comparison of a scene without and with the TCL-X100 VI tele conversion lens.
Rendiment òptic
The lens features a 4-group, 5-element optical structure, including 2 High Refractive Index (HR) elements. This design is engineered to:
- Effectively control distortion.
- Minimize chromatic aberration.
- Reduce lens flare.
These features ensure sharp, clear image quality from the center to the edges of your photographs.
Image: Optical structure diagram of the TCL-X100 VI lens.
Manteniment
Neteja de la lent
- Feu servir un drap de microfibra suau i sense borrissol dissenyat específicament per a superfícies òptiques.
- For stubborn smudges or fingerprints, use a small amount of lens cleaning solution applied to the cloth, not directly to the lens.
- Netegeu suaument la superfície de la lent amb moviments circulars des del centre cap a fora.
- Avoid using abrasive materials, paper towels, or harsh chemicals, as these can scratch the lens coating.
Emmagatzematge
- Col·loqueu sempre les tapes frontal i posterior de l'objectiu quan no l'utilitzeu per protegir els elements òptics.
- Store the lens in its provided pouch or a dedicated lens case to prevent dust accumulation and physical damage.
- Keep the lens in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
Resolució de problemes
Lent no reconeguda per la càmera
- For X100F, X100V, X100VI: Ensure the lens is securely attached. If the issue persists, try detaching and reattaching the lens.
- For X100, X100S: Verify that the additional lens settings are manually enabled in your camera's menu. Refer to your camera's manual for guidance.
Loose Rear Lens Cap
- Some users have reported that the provided rear lens cap may not fit securely. Consider purchasing a third-party replacement lens cap for a tighter fit if this becomes an issue.
- Always store the lens in its pouch to prevent the cap from falling off and exposing the rear element.
Especificacions
| Característica | Detall |
|---|---|
| Dimensions del producte | 1.77 x 2.72 x 2.72 polzades |
| Pes de l'article | 8.1 unces |
| Marca | VILTROX |
| Descripció de la distància focal | 1.4X Telephoto Conversion Lens |
| Tipus de lent | Telefoto |
| Muntatges compatibles | Fujifilm X |
| Estructura òptica | 4-group, 5-element (including 2 HR) |
Garantia i Suport
VILTROX products are covered by a manufacturer's warranty. Please refer to the included Warranty Card in your package for specific terms, conditions, and duration of the warranty. For technical support, service, or further inquiries, please visit the official VILTROX weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
Podeu trobar més informació i dades de contacte a VILTROX Official Store.
