Instruccions importants de seguretat
Llegiu totes les instruccions abans d'utilitzar aquest escalfador. Si no seguiu aquestes instruccions, podeu patir un incendi, una descàrrega elèctrica o lesions.
- Connecteu sempre els escalfadors directament a una presa/receptacle de paret. No l'utilitzeu mai amb un cable d'extensió o una aixeta d'alimentació reubicable (presa de corrent/multipluig).
- Aquest escalfador està calent quan està en ús. Per evitar cremades, no deixeu que la pell nua toqui superfícies calentes. Feu servir les nanses per moure aquest escalfador.
- Mantingueu els materials combustibles, com ara mobles, coixins, roba de llit, papers, roba i cortines com a mínim a 3 peus (0.9 m) de la part davantera de l'escalfador i allunyeu-los dels laterals i de la part posterior.
- Cal extremar la precaució quan l'escalfador és utilitzat per o a prop de nens o persones invàlides i sempre que l'escalfador es deixi en funcionament i sense vigilància.
- No feu funcionar cap escalfador amb un cable o un endoll danyats o després que l'escalfador funcioni malament, s'hagi caigut o s'hagi danyat de cap manera. Descarteu l'escalfador o torneu-lo a un centre de servei autoritzat per examinar-lo i/o reparar-lo.
- No utilitzar a l'aire lliure.
- Per desconnectar l'escalfador, gireu els controls a OFF i, a continuació, traieu l'endoll de la presa de corrent.
- No introduïu ni deixeu que entrin objectes estranys a cap obertura de ventilació o d'escapament, ja que això podria provocar una descàrrega elèctrica o incendi, o danyar l'escalfador.
- Per evitar un possible incendi, no bloquegeu de cap manera les entrades d'aire o l'escapament. No l'utilitzeu en superfícies toves, com un llit, on les obertures es poden bloquejar.
- Un escalfador té parts calentes i amb arcs o espurnes a l'interior. No l'utilitzeu en zones on s'utilitzi o emmagatzemen gasolina, pintura o líquids inflamables.
- Utilitzeu aquest escalfador només tal com es descriu en aquest manual. Qualsevol altre ús no recomanat pel fabricant pot causar incendi, descàrrega elèctrica o lesions a les persones.
- This heater includes an Overheat Protection feature and an Anti-Tip Protection feature. If the heater overheats or tips over, it will automatically shut off.
Producte acabatview
The AIRMATE 25" Electric Tower Heater (Model HP15242R-1) is designed to provide efficient and comfortable heating for indoor spaces. It features ceramic heating with metal PTC technology, multiple operating modes, and comprehensive safety features.

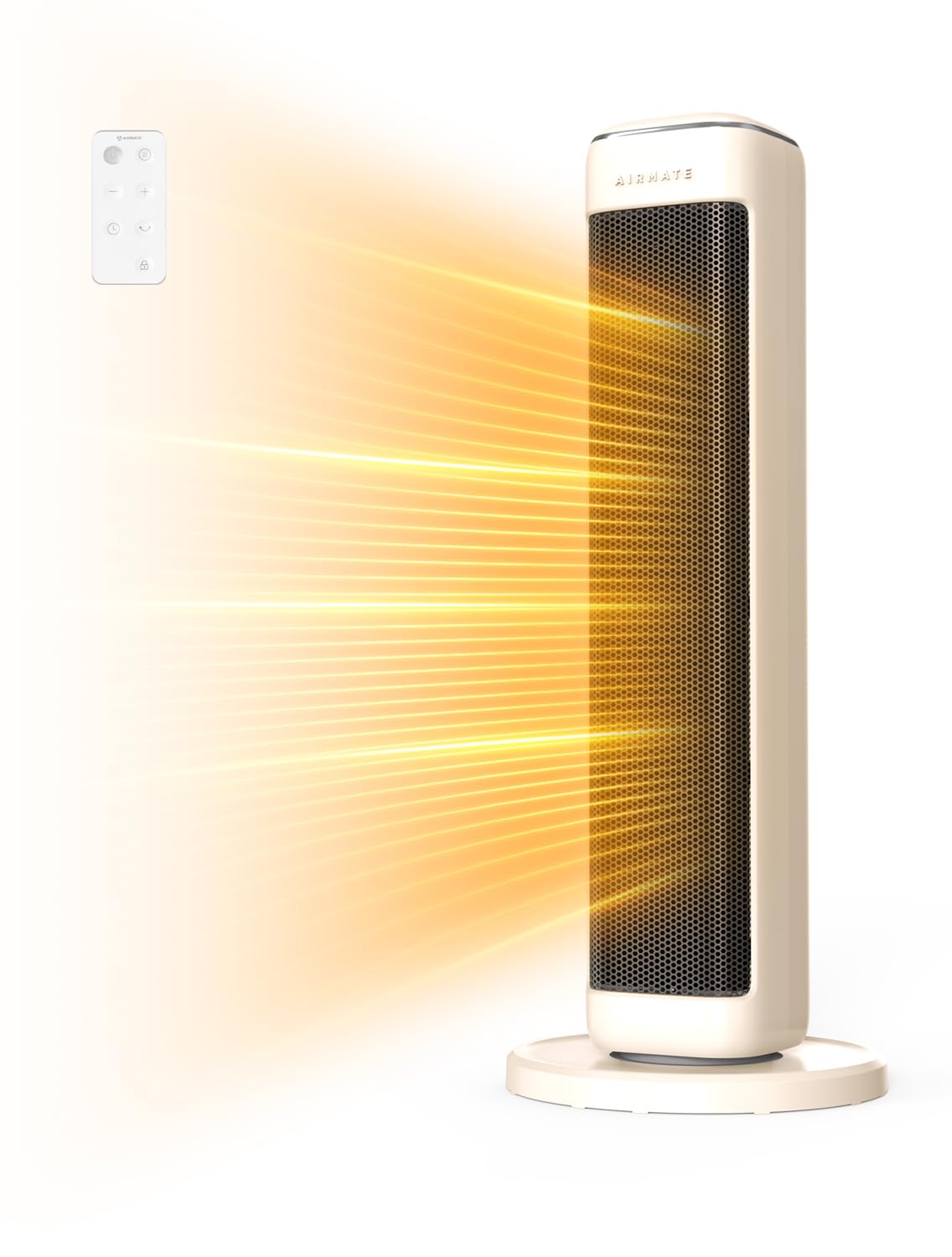

Figure 1: AIRMATE 25" Electric Tower Heater and Remote Control.
Configuració
Follow these steps to assemble the base of your AIRMATE Electric Tower Heater.
-
Alineació de la base: Ensure the lock hole of the chassis corresponds to the lock column of the electric heater.
Video 1: Demonstrates the base assembly process for the AIRMATE Electric Tower Heater, showing how to align the chassis lock hole with the heater's lock column.
-
Power Cord Threading: Thread the power cord through the chassis. Pass the small posts through the chassis holes. Insert the four screw studs into the corresponding screw holes.
-
Assegureu la base: Install the screws and tighten them using the included tool to firmly attach the base to the heater unit.
Once assembled, place the heater on a firm, level surface. Ensure it is at least 3 feet away from walls, furniture, and other objects.
Instruccions de funcionament
The AIRMATE Electric Tower Heater offers various modes and settings for optimal comfort. Use the control panel on top of the unit or the provided remote control.
Tauler de control i control remot
The control panel features buttons for Power, Mode, Temperature Adjustment (+/-), Oscillation, and Timer. The remote control duplicates these functions for convenient operation.
Figure 2: Top control panel of the AIRMATE heater.
Encès/Apagat
Premeu el botó d'engegada (Ⓘ) al tauler de control o al comandament a distància per encendre o apagar l'escalfador.
Ajust de temperatura
Use the '+' and '-' buttons to set your desired temperature between 65°F and 95°F. The current temperature setting will be displayed on the LED screen.
Figure 3: Personalized Temperature Control and Modes.
Modes de funcionament
- Mode IA (estalvi d'energia): Default temperature is 75°F. The heater automatically adjusts output based on room temperature:
- Shuts off above 77°F (Set Temperature + 2°F).
- Funciona a baixa temperatura entre 70 °F i 77 °F.
- Switches to high heat below 70°F (Set Temperature - 5°F).
This mode is designed for short, efficient heating. For continuous warmth, switch to Manual Mode or other modes.
- Manual Mode (2 Heat Settings): Choose between low heat for gentle warmth or high heat for faster heating. Both settings are designed for quiet operation.
- Mode de repòs: Provides quiet, low-level heating for undisturbed rest.
- Mode de refrigeració: The heater can also function as a cooling fan during warmer periods.
Funció d'oscil·lació
Premeu el botó d'oscil·lació (↻) on the control panel or remote to activate the 80° oscillation feature, which distributes heat evenly across a wider area.
Figure 4: Wider Heat Dissipation Range with 80° Oscillation.
Funció de temporitzador
Premeu el botó del temporitzador (⏲) on the control panel or remote to set an automatic shut-off time. The timer can be set for up to 24 hours.
Bloqueig infantil
Activate the Child Lock feature (🔒) on the remote control to prevent accidental changes to settings. When activated, the control panel buttons will not respond.
Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del vostre escalfador.
- Neteja: Desendolleu sempre l'escalfador abans de netejar-lo. Feu servir un drap suau i sec.amp drap per netejar les superfícies exteriors. No utilitzeu productes de neteja abrasius ni dissolvents.
- Emmagatzematge: When not in use, store the heater in a cool, dry place. Ensure the power cord is neatly wrapped and secured.
- Entrada/escapament d'aire: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris. Use a vacuum cleaner with a brush attachment if necessary.
Resolució de problemes
If you encounter issues with your AIRMATE Electric Tower Heater, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| L'escalfador no s'encén. | No power, power cord not fully plugged in, Overheat Protection activated, Tip-Over Protection activated. | Check power outlet. Ensure plug is fully inserted. If tipped, place upright. If overheated, unplug and allow to cool for 30 minutes before restarting. |
| L'escalfador s'atura inesperadament. | Overheat Protection activated, Tip-Over Protection activated. | Unplug and allow to cool for 30 minutes. Ensure heater is on a stable surface and not obstructed. |
| La producció de calor és baixa. | Low heat setting selected, AI Mode active, room temperature already near set temperature. | Switch to high heat setting. Adjust set temperature higher. If in AI Mode, consider switching to Manual Mode for continuous high heat. |
| L'oscil·lació no funciona. | Funció d'oscil·lació no activada. | Premeu el botó d'oscil·lació del tauler de control o del comandament a distància. |
Especificacions
- Marca: AERI
- Número de model: HP15242R-1
- Característiques especials: Adjustable Temperature, Child Lock, Flame Resistant (V0 materials), Overheat Protection, Tip-Over Protection
- Color: Beix
- Factor de forma: Torre
- Ús interior/exterior: Interior
- Dimensions del producte: 9 "P x 9" W x 25" H
- Tipus de muntatge: Muntatge al terra
- Tipus d'habitació: Bedroom, Dining Room, Home Office, Living Room, Study Room
- Tipus de cremador: PTC (Coeficient de temperatura positiu)
- Potència de calor: 1500 watts
- Tipus de combustible: Elèctric
- Nombre de velocitats: 2 (Baix, Alt)
- Voltage: 120 Volts
- Configuració de temperatura mínima: 65 graus Fahrenheit
- Configuració de temperatura màxima: 95 graus Fahrenheit
- Pes de l'article: 6.19 lliures
Garantia i Suport
For warranty information or technical support, please refer to the contact details provided in the product packaging or visit the official AIRMATE weblloc web. Conserveu el rebut de compra com a comprovant de compra.
