Mingtawn 1.83-inch HD Smart Watch User Manual

1. Introducció

This manual provides detailed instructions for the Mingtawn 1.83-inch HD Smart Watch. Please read this manual thoroughly before using your device to ensure proper operation and to maximize its features. This smartwatch is designed to be a versatile companion for daily life, fitness tracking, and communication.

2. Què hi ha a la caixa

Upon opening your Mingtawn Smart Watch package, you should find the following items:

• 1 x Mingtawn 1.83-inch HD Smart Watch
• 1 x corretja de silicona
• 1 carregador magnètic
• 1 x Manual d'usuari

3. Producte acabatview

3.1 Visualització i disseny

The Mingtawn Smart Watch features a vibrant 1.83-inch TFT HD display with a resolution of 240 x 284 pixels, offering clear and crisp visuals. The watch design is sleek and modern, suitable for various occasions.

3.2 Característiques clau

Your Mingtawn Smart Watch is equipped with a range of functionalities to support your daily activities and health monitoring:

• Trucades per Bluetooth: Fes i rep trucades directament des del teu canell.
• Notificacions de missatges: Receive alerts for messages from various social media platforms.
• Vigilància de la salut: Track heart rate, blood oxygen (SpO2), and sleep patterns.
• Modes esportius: Over 100 sports modes to track your workouts.
• Impermeable IP67: Suitable for daily waterproof use (not for hot water or seawater).
• Integrated Voice Assistant: Control your watch with voice commands.
• Característiques addicionals: Music control, camera control, weather display, sedentary reminders, alarm clock, stopwatch, and 'Find Phone' function.

4. Configuració

4.1 Càrrega del dispositiu

Before initial use, fully charge your smartwatch. Connect the magnetic charger to the charging contacts on the back of the watch and plug the USB end into a power adapter (not included) or a computer's USB port. The watch display will indicate charging status.

4.2 Instal·lació i emparellament de l'aplicació

To unlock the full potential of your Mingtawn Smart Watch, you need to connect it to its companion application on your smartphone.

1. Descarrega l'aplicació: Cerca the official Mingtawn app in your smartphone's app store (Google Play Store for Android, Apple App Store for iOS).
2. Instal·lació i registre: Instal·leu l'aplicació i seguiu les instruccions que apareixen a la pantalla per crear un compte o iniciar la sessió.
3. Activa el Bluetooth: Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
4. Emparellar el rellotge: Open the app, navigate to the device pairing section, and select your Mingtawn Smart Watch from the list of available devices. Follow any prompts on both your phone and watch to complete the pairing process.

The smartwatch is compatible with Android 7.0 and iOS 11.0 or higher.

5. Instruccions de funcionament

5.1 Fer i rebre trucades

With its built-in microphone and high-fidelity speakers, you can manage calls directly from your watch after successful Bluetooth pairing.

• Per fer una trucada: Access the dial pad or your favorite contacts list on the watch screen.
• Per rebre una trucada: When a call comes in, the watch will vibrate and display the caller ID. Tap the green icon to answer or the red icon to reject.
• Historial de trucades: View your recent call logs directly on the watch.

5.2 Notificacions

Once paired with your smartphone, the watch will provide vibration alerts and display notifications for incoming messages from apps like Facebook, Twitter, Instagram, and WhatsApp. Ensure app notifications are enabled in your phone's settings and the Mingtawn app.

5.3 Assistent de veu

Activate the integrated voice assistant by tapping the designated icon on your watch screen. You can use voice commands for various functions, such as checking the weather or initiating calls.

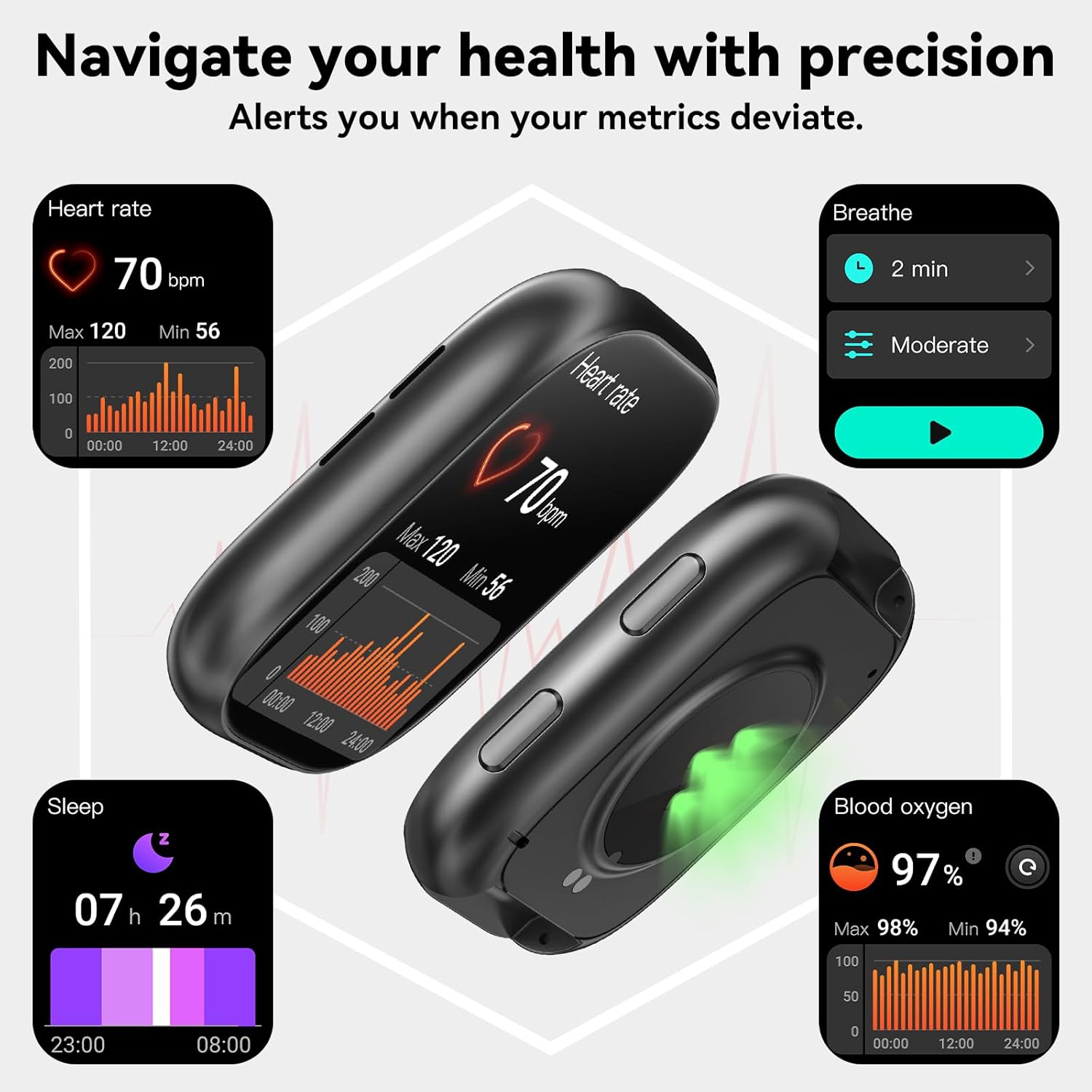

5.4 Vigilància de la salut

The smartwatch continuously monitors several health indicators:

• Freqüència cardíaca: Monitors your heart rate 24 hours a day.
• Oxigen en sang (SpO2): Fa un seguiment dels nivells d'oxigen a la sang.
• Monitorització del son: Records your sleep patterns, including deep and light sleep.
• Recordatori del cicle fisiològic: Provides reminders for women's health tracking.

Totes les dades de salut poden ser viewed in detail within the companion app, helping you understand your health status and adjust your lifestyle.

5.5 Modes esportius i seguiment de l'activitat física

The watch offers over 100 sports modes to accurately track your physical activity. It records daily steps, distance, and calorie consumption.

• Selecció d'un mode: Choose from 20 standard sports modes directly on the watch, or select from over 100 additional modes within the app and transfer them to your watch.
• Anàlisi de dades: View detailed fitness data analysis in the app to help improve your exercise results.

6. Manteniment

6.1 Neteja

Netegeu regularment el vostre rellotge intel·ligent i la corretja per evitar irritacions de la pell i mantenir la funcionalitat del dispositiu. Feu servir un drap suau i sec.amp drap per netejar la pantalla i la corretja. Eviteu utilitzar productes químics agressius o materials abrasius.

6.2 Resistència a l'aigua

The Mingtawn Smart Watch is IP67 waterproof, meaning it is resistant to splashes, rain, and brief immersion in shallow water. However, it is no suitable for swimming, showering with hot water, or exposure to seawater, as these can compromise the water seal.

7. Solució De Problemes

Si teniu problemes amb el vostre rellotge intel·ligent, consulteu les solucions habituals següents:

• El rellotge no s'encén: Ensure the watch is fully charged. Connect it to the magnetic charger and allow it to charge for at least 30 minutes before attempting to power it on again.
• No es pot emparellar amb el telèfon:
  • Assegura't que el Bluetooth estigui activat al telèfon i al rellotge.
  • Assegureu-vos que el rellotge estigui dins de l'abast del Bluetooth del telèfon.
  • Reinicieu tant el telèfon com el rellotge intel·ligent.
  • Check if the Mingtawn app is updated to the latest version.
  • If using an iPhone, ensure the watch is not already paired in your phone's Bluetooth settings. If it is, 'forget' the device and try pairing again through the app.
• Notificacions que no apareixen:
  • Verifiqueu que les notificacions de l'aplicació estiguin activades a la configuració del telèfon.
  • Ensure notification permissions are granted to the Mingtawn app.
  • Check if 'Do Not Disturb' mode is active on either your phone or watch.
• Dades de salut inexactes: Assegureu-vos que el rellotge estigui ben ajustat al canell, aproximadament a l'amplada d'un dit de l'os del canell. Netegeu el sensor de la part posterior del rellotge.
• Durada de la bateria curta: Redueix la brillantor de la pantalla, desactiva les notificacions innecessàries i limita el control continu de la freqüència cardíaca si no és necessari.

Si els problemes persisteixen, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

9. Garantia i Suport

Mingtawn is committed to providing quality products and customer satisfaction.

• Garantia: The product comes with a 2-year replacement lifetime service. Please retain your proof of purchase for warranty claims.
• Atenció al client: For any inquiries or assistance, our customer support team offers a 24-hour quick reply service. Refer to the contact information provided in the product packaging or on the official Mingtawn weblloc.
