Eseesmart Smart Front Door Lock Set Instruction Manual

Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Eseesmart Smart Front Door Lock Set (Model YL-MD168). This advanced keyless entry system offers multiple unlocking methods including Bluetooth APP control, anti-peep passcode, RFID cards, and physical keys. It features auto-lock functionality, passage mode, and robust security features designed for durability and convenience. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Contingut del paquet

Before beginning installation, verify that all components are present in the package.

• Front Plate * 1
• Base Plate Assembly * 1
• Pestillo * 1
• Pern * 1
• Tub * 1
• Spring * 1
• Decorative Cover * 1
• Battery Cover * 1
• Screw Pack (includes Self-tapping screws * 4, M4 screw (short) * 3, M4 screw (long) * 2, M5 screw * 1)
• Backup Key * 2

Imatge: Explosió view of the Eseesmart Smart Lock components, showing the front plate, base plate, latch, bolt, tube, spring, decorative cover, battery cover, various screws, and backup keys.

Configuració i instal·lació

The Eseesmart Smart Front Door Lock Set is designed for easy installation, typically requiring no additional drilling for standard door setups. It replaces existing locks and is compatible with US standard left and right-handed doors.

1. Door Compatibility Check

Assegureu-vos que la vostra porta compleixi les especificacions següents:

• Gruix de la porta: 1.49 - 1.97 polzades (38 - 50 mm)
• Part posterior: 60 mm o 70 mm
• Diàmetre del forat: Greater than 1-17/20 inches (47 mm)
• Distance between bore holes: 5-1/2 inches (140 mm) apart.

Image: Diagram illustrating door thickness, backset, hole diameter, and distance between bore holes for proper installation of the Eseesmart Smart Lock.

Image: Visual guide for checking door dimensions and compatibility with the Eseesmart Smart Lock, showing measurements for left-handed and right-handed doors.

2. Passos d'instal·lació

Follow the detailed instructions provided in the included manual for step-by-step installation. A video guide is also available for visual assistance.

Important: Ensure the bore holes are exactly 5-1/2 inches (140mm) apart for stable installation.

3. Instal·lació de la bateria

The lock requires 4 AAA batteries (not included). Install them into the battery compartment located on the interior side of the lock.

Imatge: View of the Eseesmart Smart Lock's interior, showing the battery compartment designed for 4 AAA batteries.

Instruccions de funcionament

1. Mètodes de desbloqueig

Your Eseesmart Smart Lock offers multiple convenient ways to unlock your door:

• Control per aplicació Bluetooth: Use the dedicated mobile application to unlock your door remotely.
• Keypad Passcode: Enter your personalized code on the anti-peep OLED keypad.
• Targetes RFID: Tap a registered RFID card to the lock for quick access.
• Clau física: Use the provided backup keys for traditional unlocking.

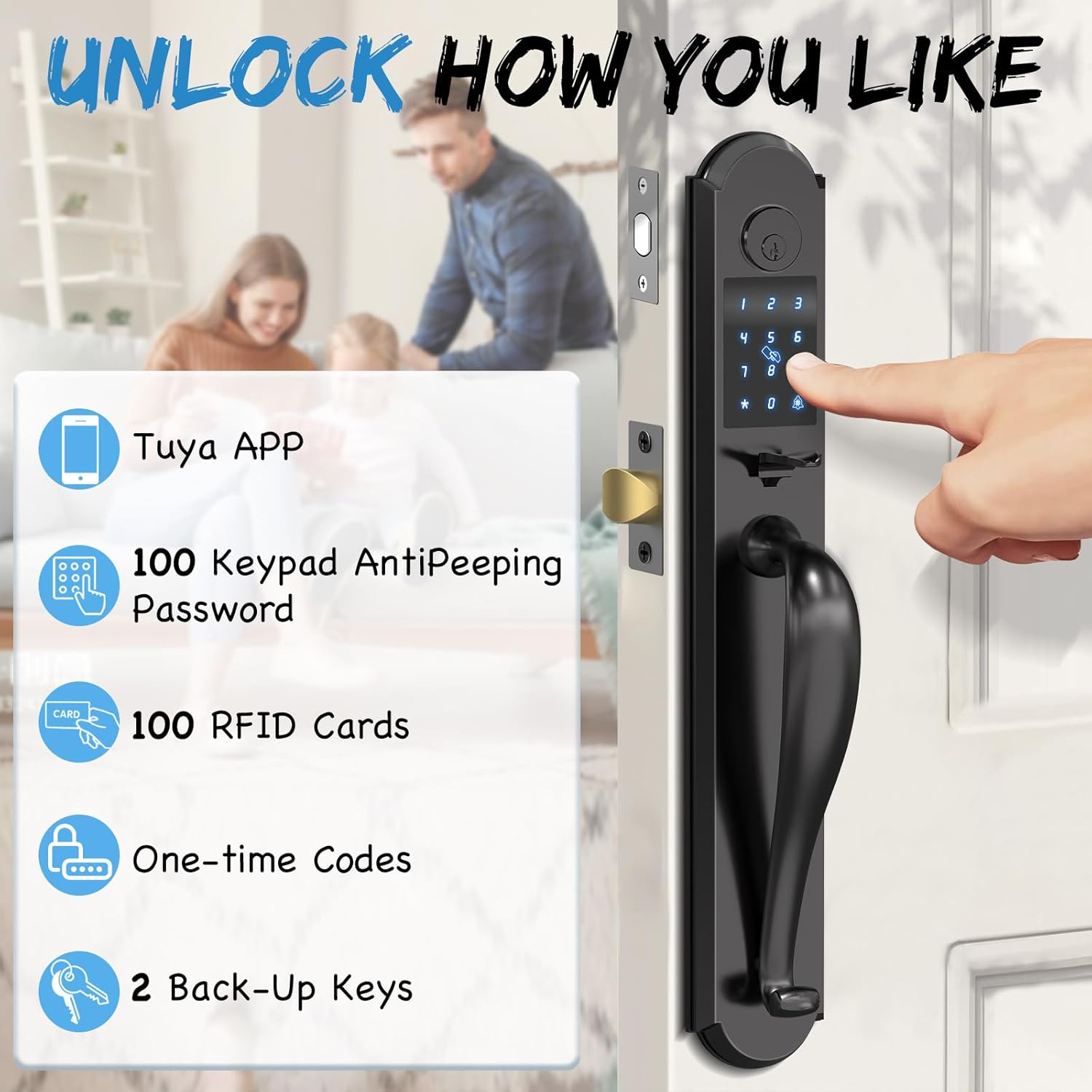

Image: Illustration of various unlocking methods including Tuya APP, keypad with anti-peeping password, RFID cards, one-time codes, and backup keys.

2. Keypad Passcode Entry (Anti-Peep Feature)

To enhance security, the keypad supports an anti-peep function. You can enter random digits before and after your actual passcode. The lock will recognize the correct sequence within the longer string of numbers.

Image: Demonstrates the anti-peep password feature, where random digits can be entered before and after the actual password to prevent onlookers from discerning the code.

3. Control d'aplicacions mòbils

The Eseesmart app allows you to manage your lock from your smartphone. Features include:

• Generating various types of codes (one-time, permanent, timed, recurring, custom) for guests.
• Assigning up to 100 guest passcodes and 100 IC cards.
• Setting Auto Lock Timer or Passage Mode.
• Real-time push notifications and activity logs.

Image: Screenshot of the Eseesmart mobile application interface, showing options for creating various types of PIN codes such as one-time, permanent, timed, custom, recurring, and erase codes.

Image: A user interacting with the Eseesmart app, highlighting features like app control, real-time push notifications, activity logs, and user management.

4. Auto Lock and Passage Mode

• Bloqueig automàtic: The lock can be configured to automatically lock after a set period (5-60 seconds) once the door is closed. This feature can be customized via the app.
• Mode de pas: When Passage Mode is enabled, the auto-lock function is temporarily turned off, allowing the door to remain unlocked for continuous access. This is useful for gatherings or when frequent entry/exit is needed.

Image: Depicts the Auto Lock feature, showing the lock automatically engaging after a set time, and the Passage Mode, where the lock remains unlocked for convenience during social events.

Image: A woman with a baby bag demonstrating the auto-lock feature, where the door automatically locks after a customizable duration of 5-60 seconds.

Image: A group of people enjoying a gathering, illustrating the Passage Mode where the lock remains unlocked, allowing free entry and exit without needing to re-enter codes.

5. Volum ajustable

The lock's operational sounds can be adjusted to Mute, Low, Medium, or High volume settings.

Image: Shows the adjustable volume settings for the smart lock, including mute, low, medium, and high volume options, with a sleeping child in the background to emphasize quiet operation.

Manteniment

1. Gestió de la bateria

• Alerta de bateria baixa: The lock will provide clear alerts when the battery level drops below 20%. Replace batteries promptly to ensure continuous operation.
• Emergency Charge: In case of complete battery depletion, the lock features a USB-C port for emergency power, allowing you to temporarily power the lock and gain entry.
• Clau de còpia de seguretat: Always keep a physical backup key in a secure location outside your home for emergency access.

Image: Displays the battery compartment, the USB-C port for emergent charging, a real-time battery status indicator, and the option to unlock with a backup physical key.

2. Neteja

Netegeu l'exterior del pany amb un drap suau iamp drap. Eviteu utilitzar netejadors o dissolvents abrasius, ja que poden danyar l'acabat i els components electrònics.

Resolució de problemes

If you encounter issues with your Eseesmart Smart Lock, refer to the following common solutions:

• El pany no respon: Check battery levels. If low, replace batteries or use the emergency USB-C charge port.
• El teclat no s'il·lumina: Assegureu-vos que les bateries estiguin instal·lades i carregades correctament.
• Dificultat amb la connexió de l'aplicació: Ensure Bluetooth is enabled on your device and you are within range of the lock. Restart the app or your phone if necessary.
• Anti-tamper alarm triggered: The lock features an anti-saw tongue with a built-in hidden anti-saw pin and an alarm system. If the prevent-pry setting is enabled and tampering is detected, the system will lock and alarm for 180 seconds.

Image: Illustrates the anti-saw tongue with a hidden anti-saw pin and the anti-tamper alarm system, which triggers a 180-second alarm if tampes detecta ering.

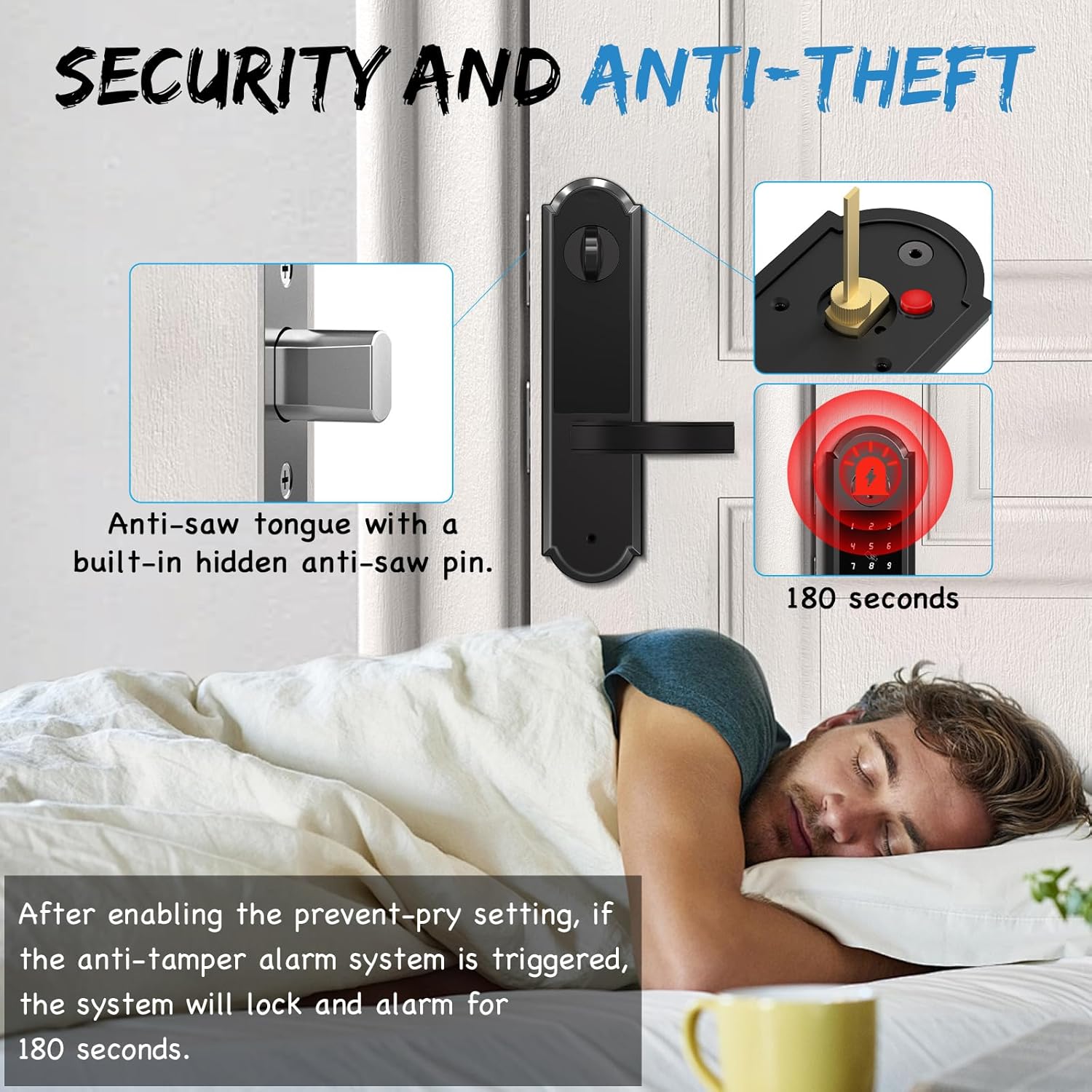

Image: A person sleeping peacefully, while the image highlights the anti-saw tongue with a built-in hidden anti-saw pin and an alarm system that activates for 180 seconds if tampes detecta ering.

Especificacions

Image: Close-up of the Eseesmart Smart Lock keypad, highlighting its robust construction and features like 2173N appearance pressure resistance, temperature resistance (-31°F to 158°F), 168H salt spray & humidity test, 150,000 usage test, and IP65 waterproof rating.

Image: The Eseesmart Smart Lock installed on a door during snowy weather, emphasizing its resistance to temperatures from -31°F to 158°F and its IP65 waterproof rating.

Garantia i Suport

Eseesmart provides a 12-month replacement or refund policy for your product. Additionally, LIFETIME troubleshooting and customer service support estan disponibles.

For any queries, technical assistance, or warranty claims, please contact Eseesmart customer service.

Informació de contacte: Refer to the Eseesmart weblloc web o la documentació de compra per obtenir les dades de contacte més actualitzades.
