Introducció
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your BILT HARD 28 Inch Gas Powered Snow Blower. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
Informació de seguretat
Operating this snow blower requires adherence to strict safety guidelines. Failure to follow these instructions can result in serious injury or property damage.
- Always wear appropriate protective clothing, including gloves and eye protection.
- Mantingueu les mans i els peus allunyats de les peces giratòries.
- Never operate the snow blower in an enclosed area or near flammable materials.
- Apagueu sempre el motor i deixeu-lo refredar abans de reomplir de combustible.
- Store the snow blower in a dry, well-ventilated area, away from heat sources and flammable materials.
- Ensure the area to be cleared is free of debris that could be thrown by the auger.
- Do not allow children or untrained individuals to operate the snow blower.
S'han acabat les característiques del producteview
The BILT HARD 28 Inch Gas Powered Snow Blower is designed for efficient and powerful snow removal. Key features include:
- Powerful 302cc engine operating at 3600 rpm.
- 28-inch clearing width and 21-inch clearing depth.
- Effortlessly throws snow up to 40 feet away.
- Self-propelled drive system with 6 forward and 2 reverse speeds.
- Integrated LED headlight for visibility in low-light conditions.
- Push-button electric start for easy ignition.
- Serrated steel augers for breaking up snow.
- Extended 190-degree adjustable steel chute.
Configuració
Before first use, ensure all components are securely assembled according to the separate assembly guide. Check the oil level and fill the fuel tank with fresh, unleaded gasoline. Refer to the engine manual for specific oil and fuel requirements.
This image displays the two convenient starting methods for the snow blower: a traditional recoil pull start and a push-button electric start for quick and easy ignition.
Instruccions de funcionament
Arrencada del motor
The snow blower features both a corded electric start and a recoil pull start. For electric start, connect to a power outlet and press the start button. For recoil start, ensure the choke is set correctly and pull the starter cord firmly.
Netejant neu
Engage the self-propelled drive system using the controls on the handlebar. Select an appropriate speed (6 forward, 2 reverse) for the snow conditions. The snow blower clears a path 28 inches wide and up to 21 inches deep.
This image illustrates the snow blower's impressive clearing capabilities, highlighting its 28-inch clearing width and 21-inch clearing depth, allowing for efficient snow removal.

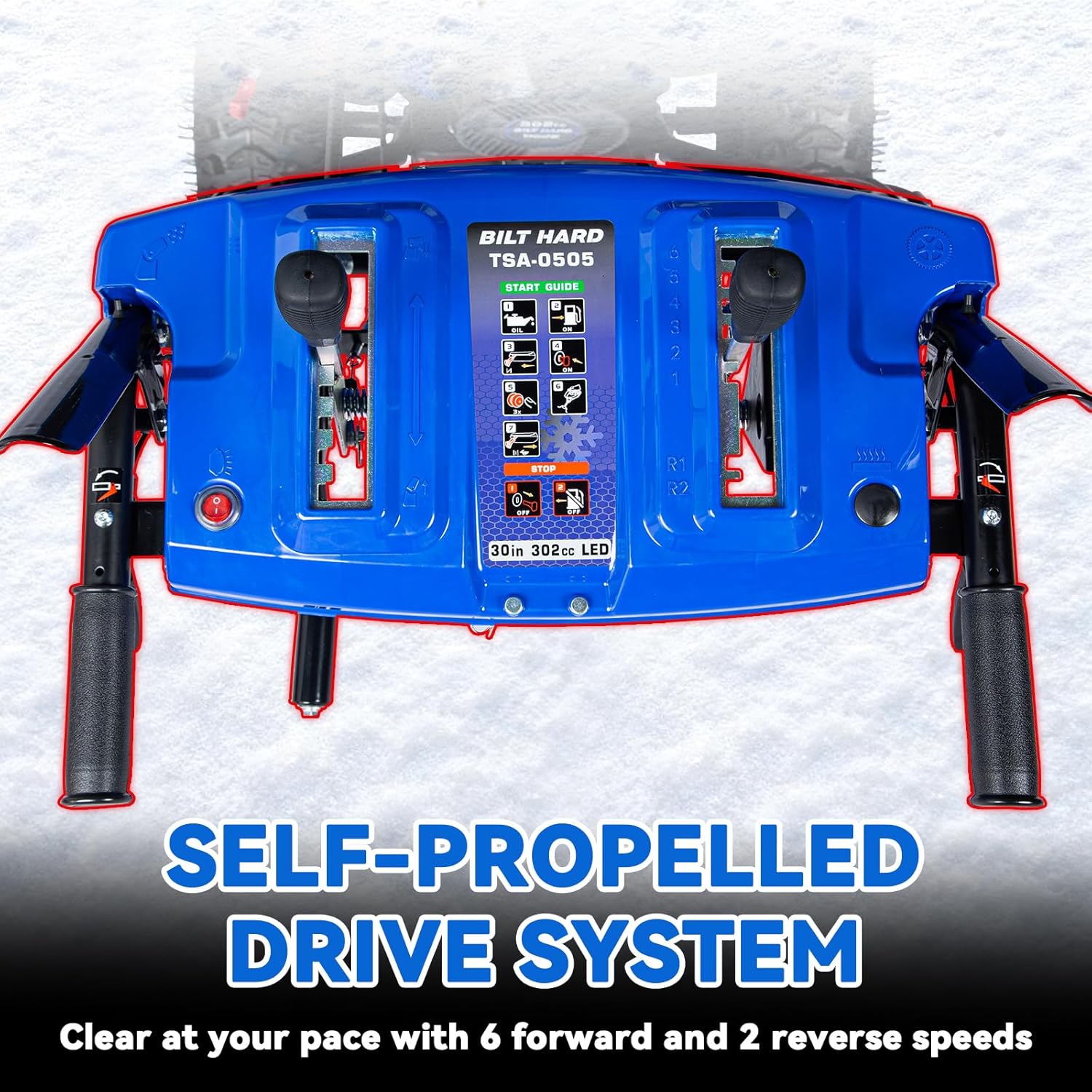

Un top view of the control panel illustrates the self-propelled drive system, offering 6 forward and 2 reverse speeds for customized clearing pace.
Control de canals
Adjust the direction of snow discharge using the 190-degree adjustable steel chute. The snow blower can throw snow up to 40 feet, allowing you to direct it away from cleared areas.
The snow blower's adjustable chute, shown here, offers a 190-degree rotation and can throw snow up to 40 feet, providing precise control over snow discharge.
Steering Control and LED Headlight
The auto-steering control allows for easy navigation and turning. The integrated LED headlight provides essential illumination for safe operation during early mornings or late evenings.
This image highlights the auto-steering control feature, which simplifies maneuvering the snow blower by allowing easy turns without manual rotation.
Integrated LED headlights are visible in this image, designed to provide enhanced visibility during operation in low-light conditions.
This image shows the BILT HARD snow blower in action, efficiently clearing a snow-covered path, demonstrating its performance.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your snow blower. Always turn off the engine and disconnect the spark plug wire before performing any maintenance.
- Oli de motor: Check oil level before each use and change according to the engine manufacturer's recommendations.
- Bujía: Inspeccioneu i netegeu o substituïu la bugia anualment.
- Auger and Chute: Regularly inspect for wear or damage. Clear any snow or ice buildup after each use.
- Pneumàtics: Check tire pressure and condition. The 14-inch tires provide optimal traction.
- Emmagatzematge: Prepare the snow blower for off-season storage by stabilizing fuel, cleaning thoroughly, and storing in a dry, protected area.
Resolució de problemes
If you encounter issues with your snow blower, refer to the following common troubleshooting steps. For more complex problems, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | No fuel, stale fuel, spark plug issue, choke setting | Check fuel level, use fresh fuel, inspect spark plug, adjust choke. |
| Snow discharge is weak | Clogged chute, auger obstruction, engine speed too low | Clear chute (with engine off!), remove obstructions, increase engine RPM. |
| Loss of drive power | Drive belt worn or loose, transmission issue | Inspect and adjust/replace drive belt. Contact service if transmission issue. |
Especificacions
Detailed specifications for the BILT HARD 28 Inch Gas Powered Snow Blower:
| Característica | Detall |
|---|---|
| Marca | BILT HARD |
| Font d'alimentació | Funciona amb gas |
| Tipus de motor | 4 Cicle |
| Desplaçament del motor | 302 centímetres cúbics |
| Amplada de neteja | 28 polzades |
| Nombre de velocitats | 8 (6 endavant, 2 enrere) |
| Pes de l'article | 265 lliures |
| Dimensions del paquet | 37.01 x 33.46 x 31.1 polzades |
Garantia i Suport
Your BILT HARD snow blower comes with a 1 any de garantia. Estem compromesos amb la vostra satisfacció.
If you have any questions, concerns, or require assistance, please do not hesitate to contact our dedicated support team directly via Amazon email. Our team is available to assist you and ensure your peace of mind throughout the winter season.
