Midea 18Kg Vortex Wash Top Load Washing Machine User Manual

Introducció

Thank you for choosing the Midea 18Kg Vortex Wash Top Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

This washing machine features a Deep Clean 360° wash system with an impeller for powerful stain removal and uniform cleaning. It includes 12 automatic wash programs, 4 water level options, and a Turbo option to reduce wash time by 20% on selected cycles. The Power Mix dispenser ensures thorough detergent dissolution, and the Auto Clean function helps maintain tub hygiene.

Imatge: Frontal view of the Midea 18Kg Vortex Wash Top Load Washing Machine.

Configuració i instal·lació

Proper installation is crucial for the performance and longevity of your washing machine. Follow these steps carefully.

1. Desembalatge

• Traieu tots els materials d'embalatge, inclòs l'embalatge base i les pel·lícules protectores.
• Inspect the washing machine for any shipping damage. If damage is found, do not install and contact your retailer.

2. Ubicació

• Col·loqueu la rentadora sobre una superfície ferma i anivellada per minimitzar les vibracions i el soroll durant el funcionament.
• Ensure there is adequate space around the machine for ventilation and maintenance. Avoid direct sunlight or excessively humid environments.

3. Connexió d'aigua

• Connecteu les mànegues d'entrada d'aigua calenta i freda a les vàlvules corresponents de la part posterior de la màquina i a la xarxa d'aigua de la vostra llar. Assegureu-vos que les connexions estiguin ben ajustades per evitar fuites.
• Use new hoses provided with the appliance; do not reuse old hoses.

4 Drenatge

• Position the drain hose into a standpipe or over the edge of a utility sink. Ensure the drain hose is securely fastened and positioned at the correct height (between 86 cm and 100 cm from the floor) to prevent siphoning or backflow.

5. Connexió d'alimentació

• Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage and frequency match the specifications of your washing machine.
• No utilitzeu cables d'extensió ni adaptadors.

6. Anivellació

• Adjust the leveling feet at the bottom of the washing machine until the appliance is perfectly level. Use a spirit level to verify.

Instruccions de funcionament

Segueix aquests passos per a un funcionament eficaç i segur de la teva rentadora Midea.

1. Tauler de control acabatview

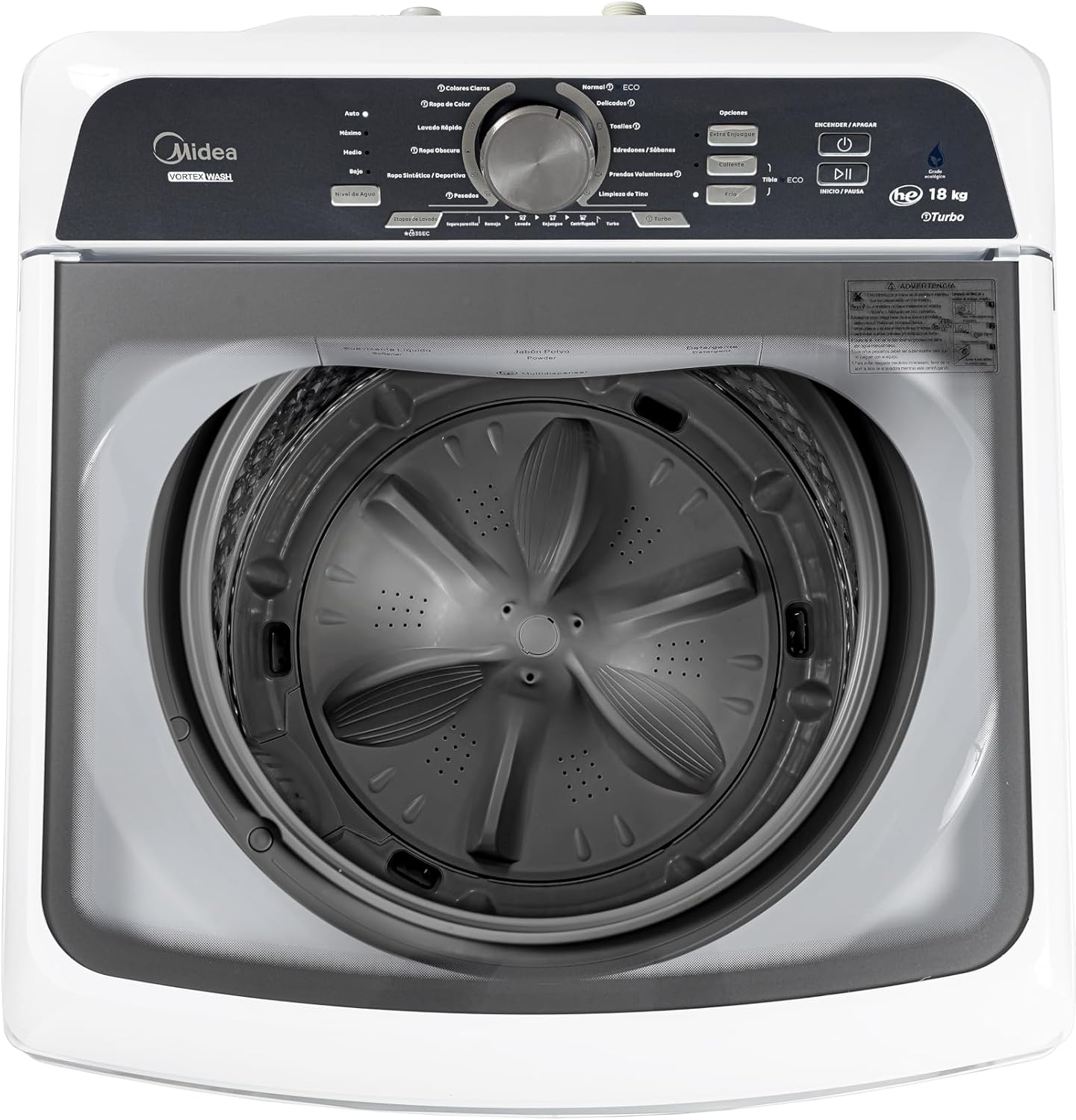

Imatge: Detallada view of the control panel, showing program selection, water level, and function buttons.

The control panel features a central dial for program selection, buttons for water level, turbo option, and start/pause. Refer to the labels on the panel for specific functions.

2. Càrrega de la bugaderia

• Open the lid and load clothes loosely into the tub. Do not overload the machine; ensure there is enough space for clothes to move freely.
• Distribuïu la roba de manera uniforme per evitar desequilibris durant el cicle de centrifugació.

3. Afegint detergent i suavitzant

• The Power Mix dispenser is designed for powder detergent. Add the recommended amount of powder detergent to the dispenser.
• For liquid detergent or fabric softener, use the designated compartments in the dispenser.

4. Selecció d'un programa

• Turn the central dial to select one of the 12 automatic wash programs: Whites, Normal, Quick, Cotton, Synthetic, Super Eco, Delicate, Towels, Spin, Duvet, Jeans, Heavy Load, Dark Colors, Light Colors, Sportswear, Bulky Items, Tub Clean.
• Choose the program that best suits your laundry type and soil level.

5. Water Level Selection

• Press the Water Level button to select from Automatic, Minimum, Medium, or Maximum. The Automatic setting will detect the load size and adjust the water level accordingly.

6. Turbo Option

• For certain cycles, you can activate the Turbo option to reduce the wash time by approximately 20%. Press the Turbo button if available for your selected program.

7. Inici del cicle de rentat

• Close the lid and press the Start/Pause button to begin the wash cycle.

8. Pausing/Stopping a Cycle

• To pause a running cycle, press the Start/Pause button. To resume, press it again.
• To stop a cycle completely, press and hold the Start/Pause button for a few seconds.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la rentadora.

1. Cleaning the Tub (Auto Clean)

• The washing machine features an Auto Clean function to prevent residue buildup. Select the 'Tub Clean' program periodically (e.g., once a month) to clean the inner tub.
• You may add a washing machine cleaner specifically designed for tub cleaning during this cycle.

2. Neteja del dispensador de detergent

• Remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener residue.
• Clean the dispenser housing with a damp tela.

3. Neteja del filtre de pelusa

Image: Interior of the washing machine tub, highlighting the Wave Wash agitator and lint filter location.

• The Wave Wash agitator includes a lint filter. Regularly check and clean the lint filter to ensure efficient operation and prevent lint transfer to clothes.
• Remove the filter, clear any accumulated lint, and rinse it thoroughly before reinserting.

4. Neteja exterior

• Netegeu les superfícies exteriors de la rentadora amb un drap suau i sec.amp drap. Eviteu productes de neteja o dissolvents abrasius.

Resolució de problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals.

• La màquina no arrenca: Ensure the power cord is securely plugged in, the lid is closed properly, and the Start/Pause button has been pressed. Check if there is a power outage.
• Sense omplir d'aigua: Check if the water supply faucets are fully open and if the water inlet hoses are not kinked or blocked. Ensure household water pressure is adequate.
• L'aigua no s'escorre: Verify that the drain hose is not kinked, blocked, or positioned too high. Clean the lint filter if it is clogged.
• Vibració/soroll excessiu: Ensure the washing machine is level and all four feet are firmly on the floor. Redistribute the laundry inside the tub if it is unbalanced. Remove any shipping bolts or packaging materials that may still be present.
• Codis d'error: If an error code appears on the display, consult the full user manual (if available) or contact customer support with the specific code for assistance.

Especificacions

Detailed technical specifications for the Midea 18Kg Vortex Wash Top Load Washing Machine.

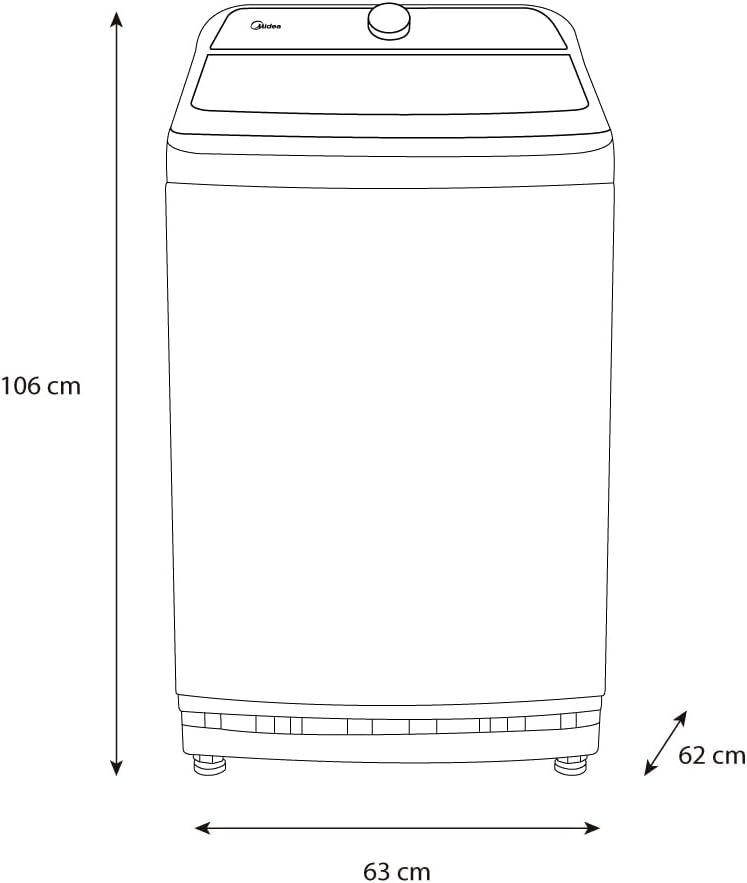

Image: Dimensional diagram of the washing machine, showing height, width, and depth.

Garantia i Suport

Midea products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Midea weblloc.

For technical assistance, spare parts, or service inquiries, please contact Midea customer support. Have your model number (MA500W18/W) and serial number ready when contacting support.

Podeu trobar més informació i recursos de suport a Midea Brand Store on Amazon.
