BILT HARD 24" Capacity Tire Changer and Balancer Combo

1. Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and setup of your BILT HARD 24" Capacity Tire Changer and Balancer Combo. Please read all instructions carefully before use to ensure proper functionality and safety.

2. Instruccions de seguretat

• Utilitzeu sempre l'equip de protecció individual (EPI) adequat, incloent-hi ulleres i guants de seguretat.
• Ensure the machine is placed on a level, stable surface and properly secured before operation.
• Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o ajust.
• Mantingueu les mans i la roba allunyades de les parts mòbils durant el funcionament.
• Do not exceed the maximum tire and rim capacities specified for the machine.
• Ensure proper air pressure is supplied to pneumatic components.
• Només personal format ha de fer servir aquest equip.

3. Configuració

3.1 Desembalatge i muntatge inicial

Carefully unpack the tire changer and balancer combo. Remove all packaging materials and inspect for any shipping damage. Identify all components and accessories.

For detailed installation of the tire changer, refer to the video below:

3.2 Connexió del subministrament d'aire

Ensure a stable air supply is connected to the tire changer. The machine requires adequate air pressure for bead breaking and clampoperacions d'ingrés.

Imatge: Air filter and pressure gauge on the tire changer. This image shows the air filtration system and pressure gauge, crucial for maintaining optimal pneumatic performance.

4. Instruccions de funcionament

4.1 Tire Changer Operation

The tire changer is designed for efficient mounting and demounting of tires. It features dual assist arms and a bead blaster for tough beads.

4.1.1 Bead Breaking

Position the wheel on the bead breaker and apply force using the foot pedal. For stubborn beads, utilize the handheld bead blaster system.

Imatge: Handheld Bead Blaster System. This image illustrates the handheld bead blaster, used for quickly seating tire beads.

4.1.2 Mounting and Demounting

Use the dual assist arms and mounting head to carefully mount or demount tires, ensuring plastic protectors are in place to prevent rim damage.

Imatge: Pneumatic Double Assist Arms. This image highlights the dual assist arms, which aid in handling stiff sidewall tires and low-profile pneumàtics.

Imatge: Stainless steel mounting head with plastic protectors. This image shows the mounting head equipped with plastic protectors to prevent scratching of alloy wheels.

4.2 Wheel Balancer Operation

The wheel balancer provides precise balancing for a smooth ride.

4.2.1 Mounting the Wheel

Securely mount the wheel onto the balancer's shaft. Use appropriate cones and adapters for a snug fit.

4.2.2 Data Input and Balancing

Use the compact operation panel and automatic measurement ruler to input rim data (A/D values). Select the appropriate ALU mode for alloy wheels. Initiate the balancing cycle and apply weights as indicated by the display.

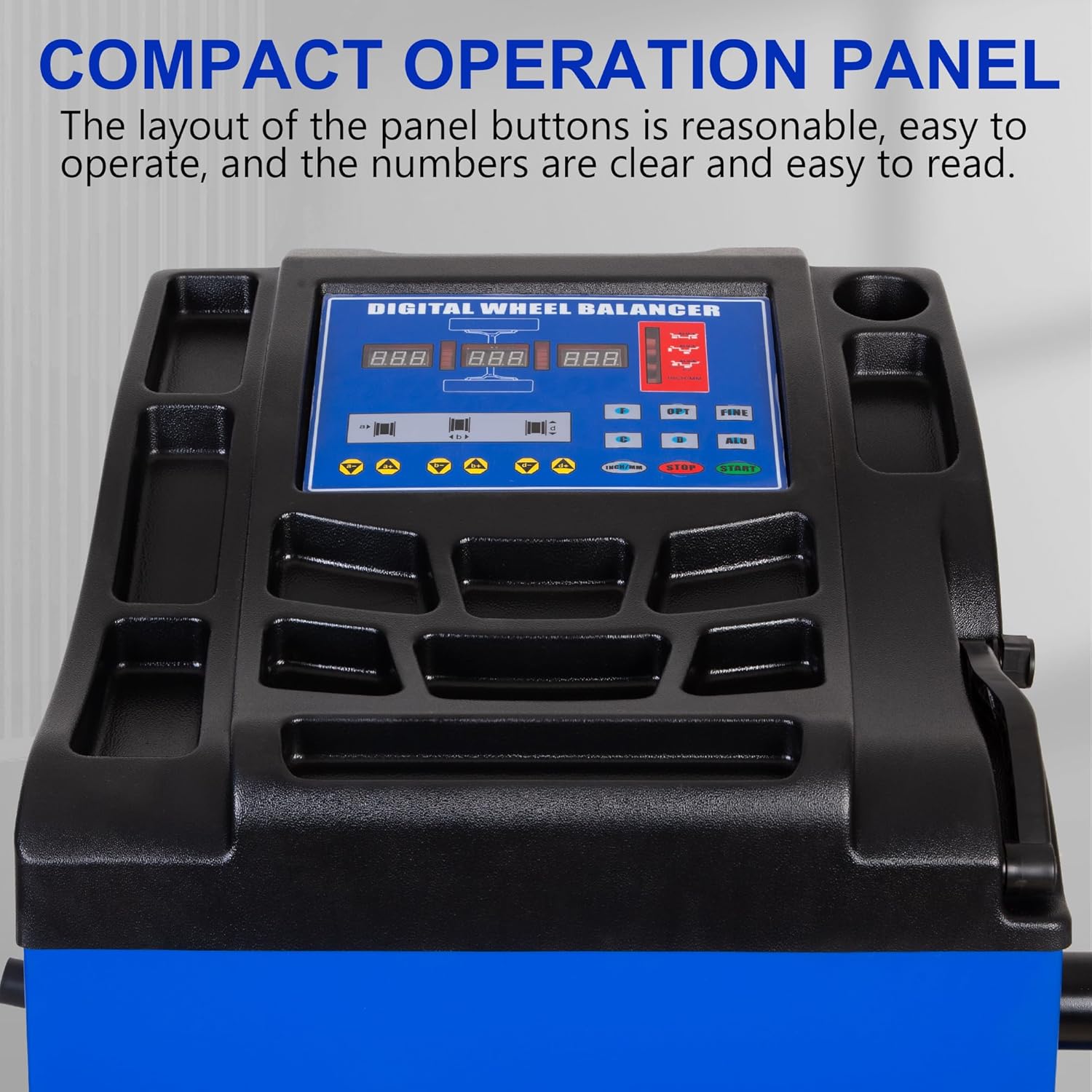

Imatge: Compact Operation Panel. This image displays the digital wheel balancer's control panel, featuring clear buttons and a digital display for easy operation.

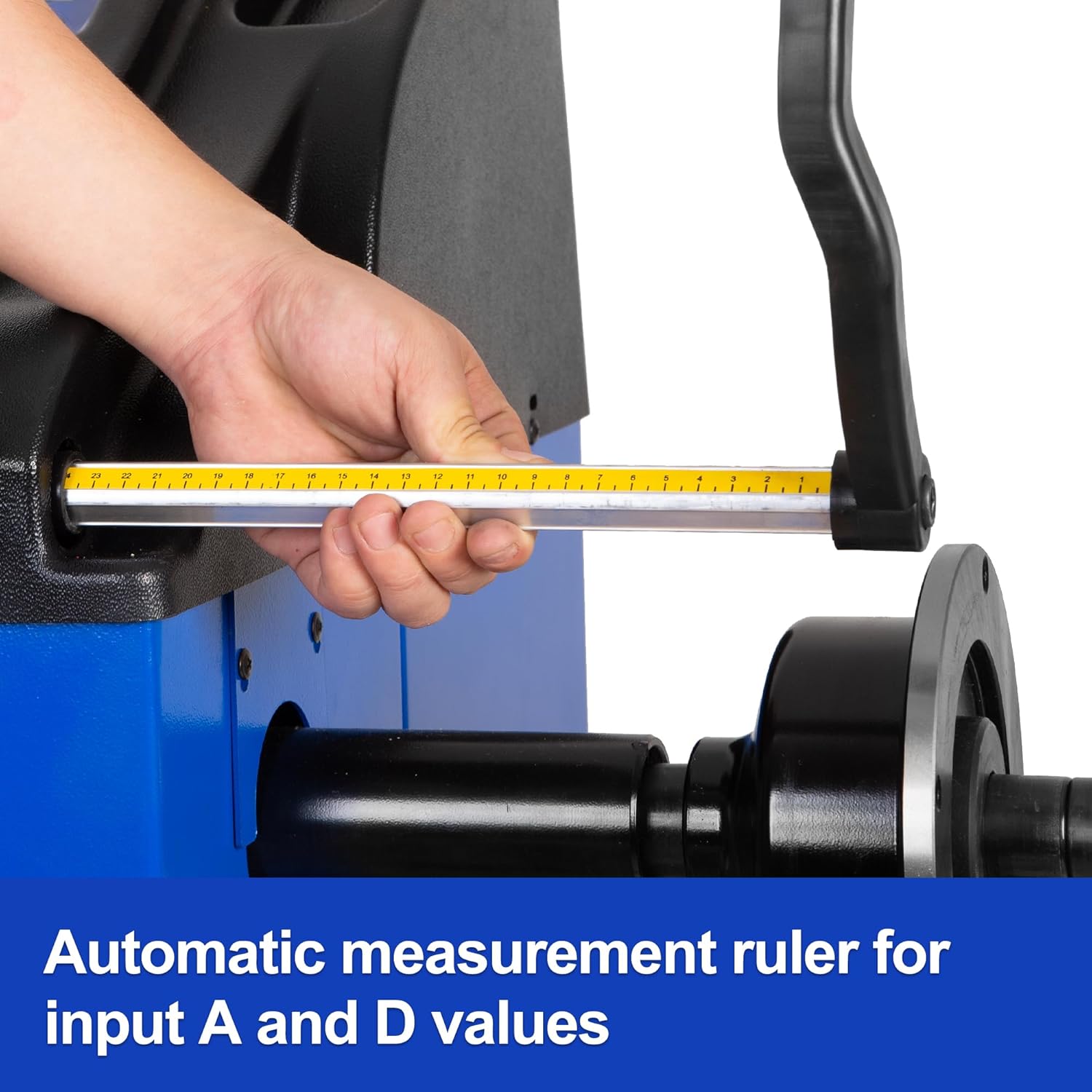

Imatge: Automatic measurement ruler for input A and D values. This image shows the integrated ruler used for precise automatic measurement of rim dimensions.

5. Manteniment

5.1 Neteja regular

• Clean the machine regularly to prevent buildup of dirt and debris, especially around moving parts and sensors.
• Wipe down the control panel with a soft, dry cloth.

5.2 Lubricació

• Periodically lubricate moving parts such as the assist arms and clamping jaws to ensure smooth operation.
• Refer to the detailed product diagram for specific lubrication points.

5.3 Air System Check

• Regularly check the air filter and water separator for accumulated moisture and debris. Drain or replace as necessary to maintain clean air supply.
• Inspect air hoses for leaks or damage.

6. Solució De Problemes

6.1 Tire Changer Issues

• Problema: Tire not demounting easily.
  Solució: Ensure sufficient lubrication on the tire bead. Check air pressure for bead breaker and clamping jaws. Utilize the bead blaster for stubborn beads.
• Problema: Rim damage during operation.
  Solució: Verify plastic protectors are correctly installed on the mounting head and clamping jaws. Ensure proper technique is used with assist arms.

6.2 Wheel Balancer Issues

• Problema: Inaccurate balancing results.
  Solució: Ensure the wheel is securely mounted and centered on the shaft. Verify correct rim data (A/D values) are entered using the automatic measurement ruler. Calibrate the balancer if necessary (refer to specific calibration instructions in the full manual).
• Problema: La màquina no arrenca.
  Solució: Check power connection and ensure the emergency stop button is not engaged.

7. Especificacions

7.1 General

• Potència: 110 V
• Noise Level (Balancer): 70 dB

7.2 Desmuntador de pneumàtics

• Motor: Heavy-duty 2.0HP
• Rim Capacity: 10" a 24"
• Max Tire Diameter: Fins a 40"
• Bead Breaker Force: 10 BAR
• Característiques: Dual Assist Arms, Handheld Bead Blaster, Stainless Steel Mounting Head with Plastic Protectors

Equilibradora de rodes 7.3

• Motor: 250W
• Rim Capacity: 10" a 28"
• Mida de l'eix: 1.42 polzades (36 mm)
• Característiques: One-touch auto-measurement for A/D values, Four dedicated ALU modes for alloy wheels, Dynamic and Static Balancing

Imatge: 1.42 inch (36mm) Balancer Shaft. This image shows the robust 36mm shaft of the wheel balancer, designed for secure wheel mounting.

Imatge: Dimensions of BILT HARD Tire Changer and Balancer. This image provides the overall dimensions for both the tire changer and the wheel balancer units.

8. Què hi ha a la caixa

The following items are included with your BILT HARD 24" Capacity Tire Changer and Balancer Combo:

• Four Cones
• Cargol
• Jaw Covers
