Vente-unique LAVENA 60 cm Wall-Mounted Bathroom Cabinet with Integrated Sink - Instruction Manual

1. Introducció

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your Vente-unique LAVENA 60 cm wall-mounted bathroom cabinet with an integrated sink. Please read all instructions carefully before beginning installation to ensure safe and correct usage. This cabinet is designed to offer practical storage and enhance your bathroom space.

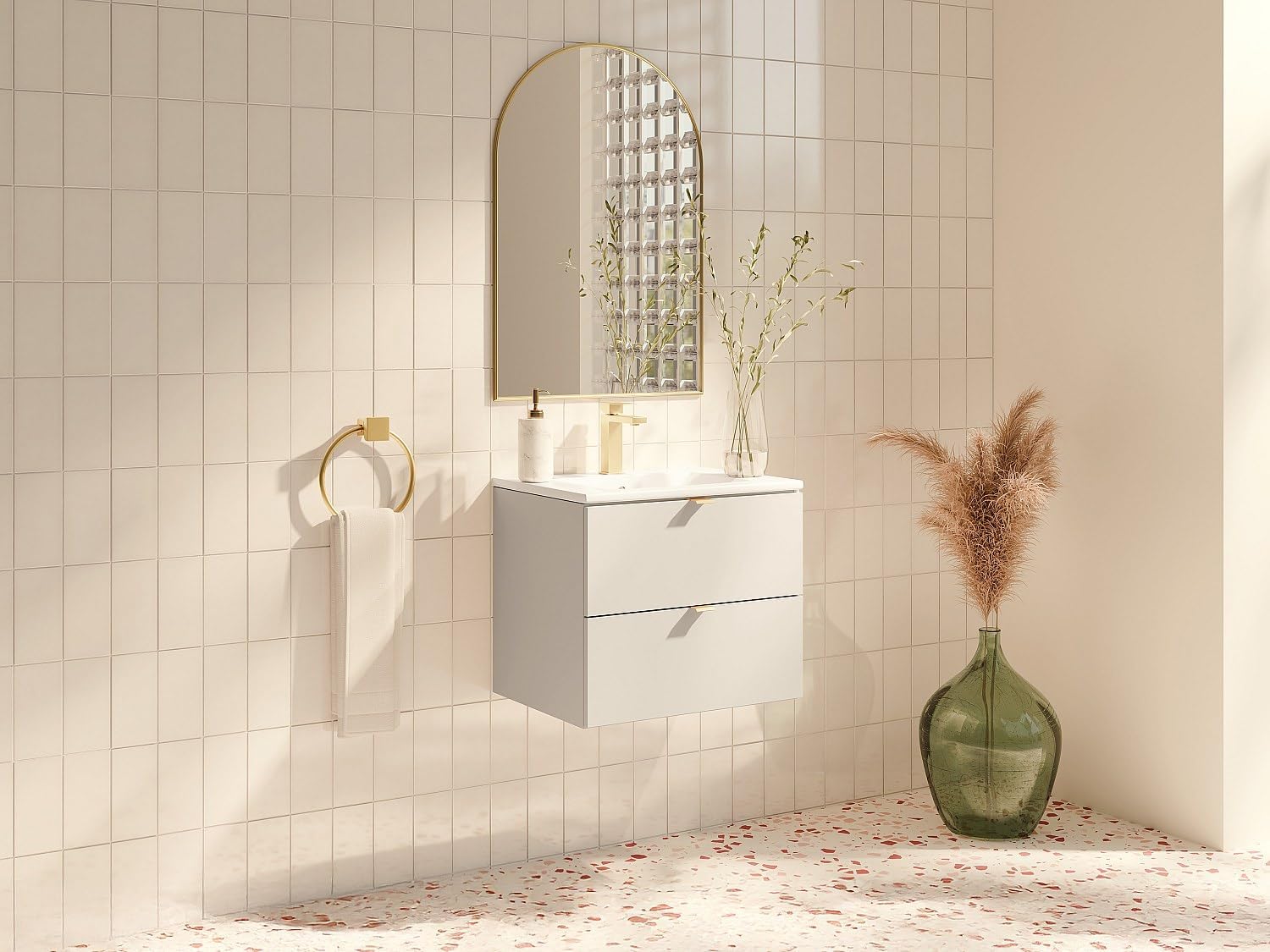

Image: The LAVENA 60 cm wall-mounted bathroom cabinet with integrated sink, shown in a complete bathroom setup.

2. Informació de seguretat

• Always ensure the cabinet is securely mounted to a suitable wall structure. Professional installation is recommended.
• Do not overload the drawers or cabinet shelves.
• Mantingueu totes les peces petites i els materials d'embalatge fora de l'abast dels nens.
• Exercise caution when handling tools during assembly and installation.
• Ensure all water connections are properly sealed to prevent leaks.
• This product is made from particle board. Avoid prolonged exposure to excessive moisture.

3. Contingut del paquet

Please check that all components are present before beginning assembly. If any parts are missing or damaged, contact your retailer.

• 1 x LAVENA Under-sink Cabinet (Assembly required)
• 1 x Integrated Ceramic Sink (Note: Sink may be packaged separately or not included depending on your purchase option.)
• Set of Handles (Choice of black, silver, or gold, as per your selection)
• Assembly Hardware (screws, dowels, wall mounting brackets)

Note: Faucet and plumbing fixtures are not included.

4. Configuració i instal·lació

4.1 Eines necessàries (no incloses)

• Drill and drill bits (appropriate for wall type)
• Tornavís (cap Phillips)
• Nivell
• Cinta mètrica
• Llapis
• Silicone sealant (for sink installation)

4.2 Comprovacions prèvies a la instal·lació

• Ensure the wall where the cabinet will be mounted is structurally sound and capable of supporting the weight of the cabinet and its contents.
• Verify the location of existing plumbing for water supply and drainage.
• Desembaleu tots els components i verifiqueu-los amb la llista de contingut del paquet.

4.3 Muntatge del Gabinet

1. Follow the detailed assembly diagrams provided with your hardware kit to construct the main cabinet frame.
2. Assemble the two drawers, ensuring the soft-close runners are correctly installed.
3. Attach the chosen handles to the drawer fronts using the provided screws.

Image: The LAVENA cabinet with drawers open, illustrating internal structure and drawer runners.

4.4 Muntatge a la paret

1. Determine the desired height for your cabinet. Use a level and pencil to mark the mounting points on the wall according to the technical drawing.
2. Drill pilot holes at the marked locations. Use appropriate wall plugs for your wall type (e.g., concrete, plasterboard).
3. Secure the wall mounting brackets to the wall using screws. Ensure they are level and firmly attached.
4. Carefully lift the assembled cabinet and hook it onto the wall mounting brackets. Ensure it is securely seated and level.

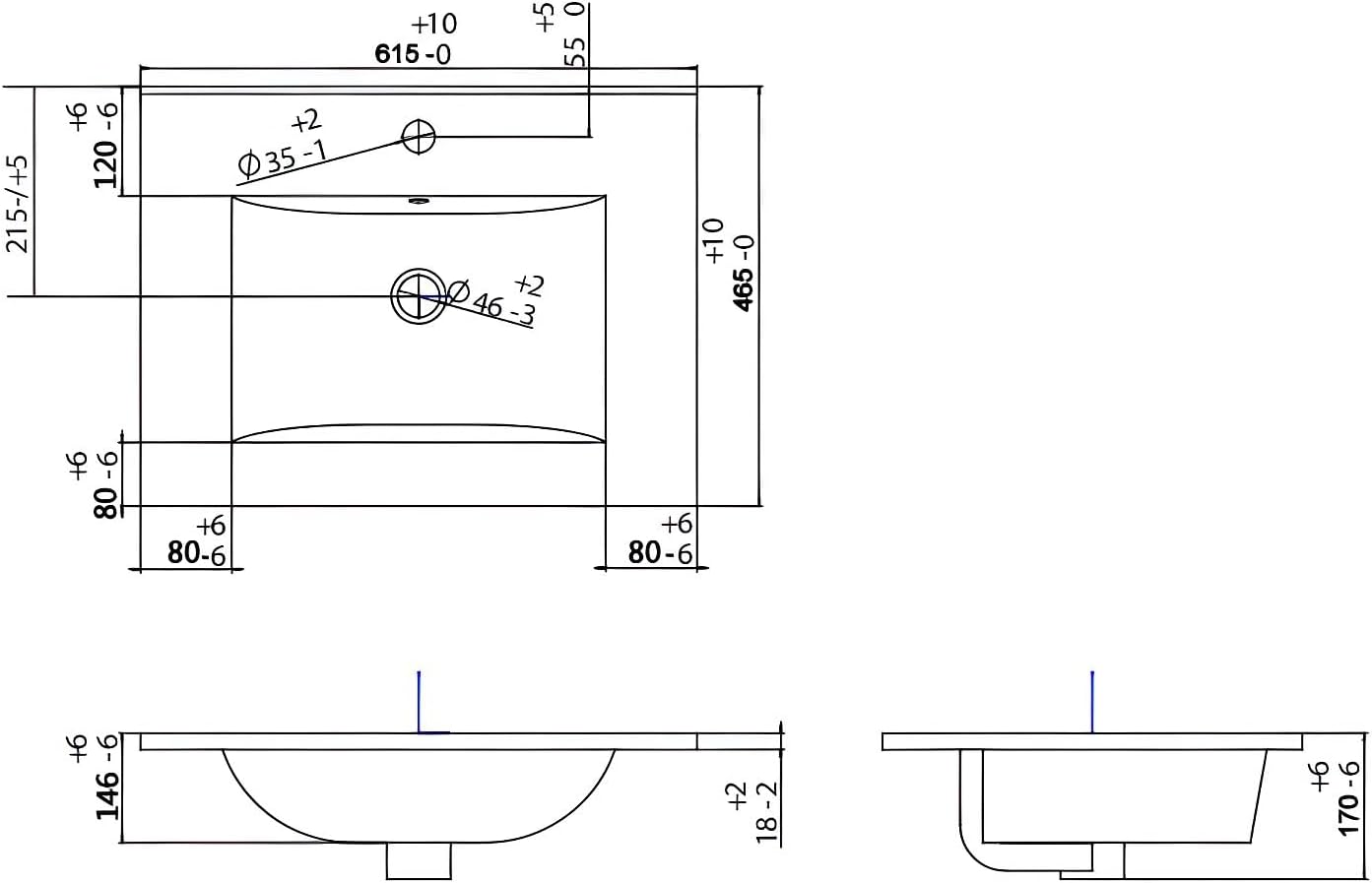

Image: Technical drawing showing precise dimensions and mounting points for the cabinet and sink.

4.5 Sink Installation

1. Place the integrated ceramic sink onto the top of the cabinet. Ensure it aligns correctly with the cabinet edges and plumbing cutouts.
2. Apply a bead of silicone sealant around the edges where the sink meets the cabinet to create a waterproof seal.
3. Install your chosen faucet and drain assembly according to their respective manufacturer's instructions.
4. Connect the water supply lines and drain pipe. Test for leaks thoroughly before using.

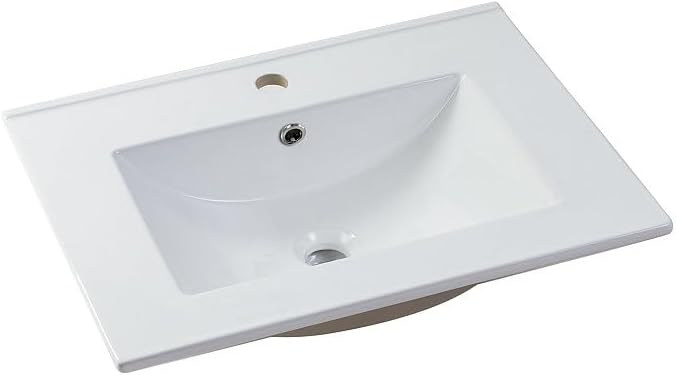

Imatge: Detallada view of the white ceramic integrated sink, highlighting the faucet hole and drain opening.

5. Instruccions de funcionament

The LAVENA bathroom cabinet features two soft-close drawers for convenient storage. To operate, simply pull the drawer handles to open and push gently to close. The soft-close mechanism will engage automatically, ensuring quiet and smooth closure, preventing slamming and extending the life of the drawers.

6. Manteniment

6.1 Cura de l'armari

• Netegeu les superfícies de l'armari amb un drap suau iamp tela.
• Avoid using abrasive cleaners, harsh chemicals, or solvents, as these can damage the finish of the particle board.
• Immediately wipe away any spilled water or moisture to prevent swelling or damage to the wood material.

6.2 Sink Care

• Clean the ceramic sink with mild soap and water.
• For stubborn stains, use a non-abrasive bathroom cleaner suitable for ceramic surfaces.
• Esbandiu bé després de la neteja per eliminar qualsevol residu.

6.3 Manteniment general

• Periodically check all screws and fittings for tightness and re-tighten if necessary.
• Inspect plumbing connections for any signs of leaks.

7. Solució De Problemes

• Els calaixos no tanquen bé: Check for any obstructions in the drawer runners. Ensure the runners are clean and free of debris. Verify that the soft-close mechanism is properly aligned.
• Water leaks from sink or plumbing: Turn off the water supply immediately. Check all plumbing connections for tightness. Ensure silicone sealant around the sink is intact. If leaks persist, consult a professional plumber.
• Loose handles: Use a Phillips head screwdriver to gently tighten the screws securing the handles from inside the drawer. Do not overtighten.
• El gabinet sembla inestable: Ensure the wall mounting brackets are securely fastened to the wall and the cabinet is properly seated on them. Re-check wall anchors if necessary.

8. Especificacions

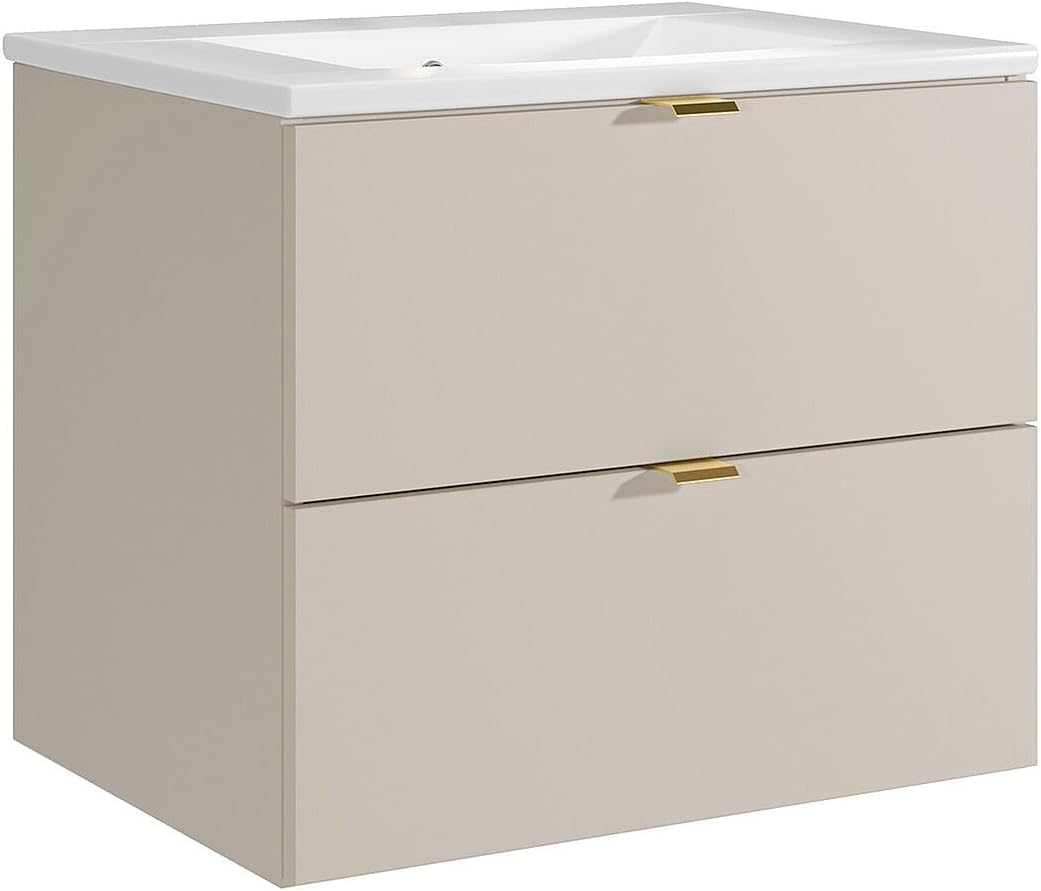

Imatge: Frontal view of the LAVENA 60 cm bathroom cabinet with integrated sink.

9. Informació de la garantia

Specific warranty details for the Vente-unique LAVENA bathroom cabinet are typically provided with your purchase documentation or on the retailer's website. Please refer to these resources for information regarding warranty coverage, terms, and conditions. Keep your proof of purchase for any warranty claims.

10. Suport

If you encounter any issues not covered in this manual or require further assistance, please contact the retailer from whom you purchased the Vente-unique LAVENA bathroom cabinet. They will be able to provide guidance or direct you to the appropriate support channels.
