Jackery Explorer 1500 Ultra Portable Power Station Instruction Manual

Introducció

The Jackery Explorer 1500 Ultra is a robust and versatile portable power station designed to provide reliable power in various environments, from outdoor adventures to emergency home backup. Featuring a durable construction and advanced battery technology, this manual provides essential information for safe and efficient operation.

Característiques clau

• Durabilitat extrema: IP65-rated for dust and water resistance, Level 9 seismic tested, and one-meter drop-resistant, ensuring reliability in harsh conditions.
• Alt rendiment: Equipped with a 1536Wh LiFePO4 battery, delivering a consistent 1800W AC output and a massive 3600W peak output for 5 seconds.
• Vida útil ampliada: LiFePO4 battery cells provide over 4,000 charge cycles to 70% capacity, offering over a decade of reliable use.
• Càrrega ultra ràpida: Achieves full AC charge in 1.5 hours, solar charging in as fast as 2.5 hours (800W Max), and vehicle alternator charging in approximately 3 hours.
• Disseny de grau industrial: Compact and lightweight (50% smaller, 53% lighter than industry standards), featuring multi-faceted beveled corners, a PMMA+PC protective screen, anti-slip laser-etched top, and a removable metal base for easy maintenance.
• Ampli rang de temperatures: Operates reliably in temperatures from 5°F to 113°F.

Producte acabatview

Imatge 1: The Jackery Explorer 1500 Ultra in a dusty, wet environment, highlighting its IP65 dustproof and waterproof capabilities. The display shows 100% charge.

Imatge 2: The Explorer 1500 Ultra providing power to a circular saw, illustrating its ability to deliver 3600W peak power for 5 seconds, 10 times longer than the industry standard.

Imatge 3: The power station connected for multi-way fast charging: 1.5 hours for AC, 2.5 hours for solar (800W Max), and 3 hours for alternator charging.

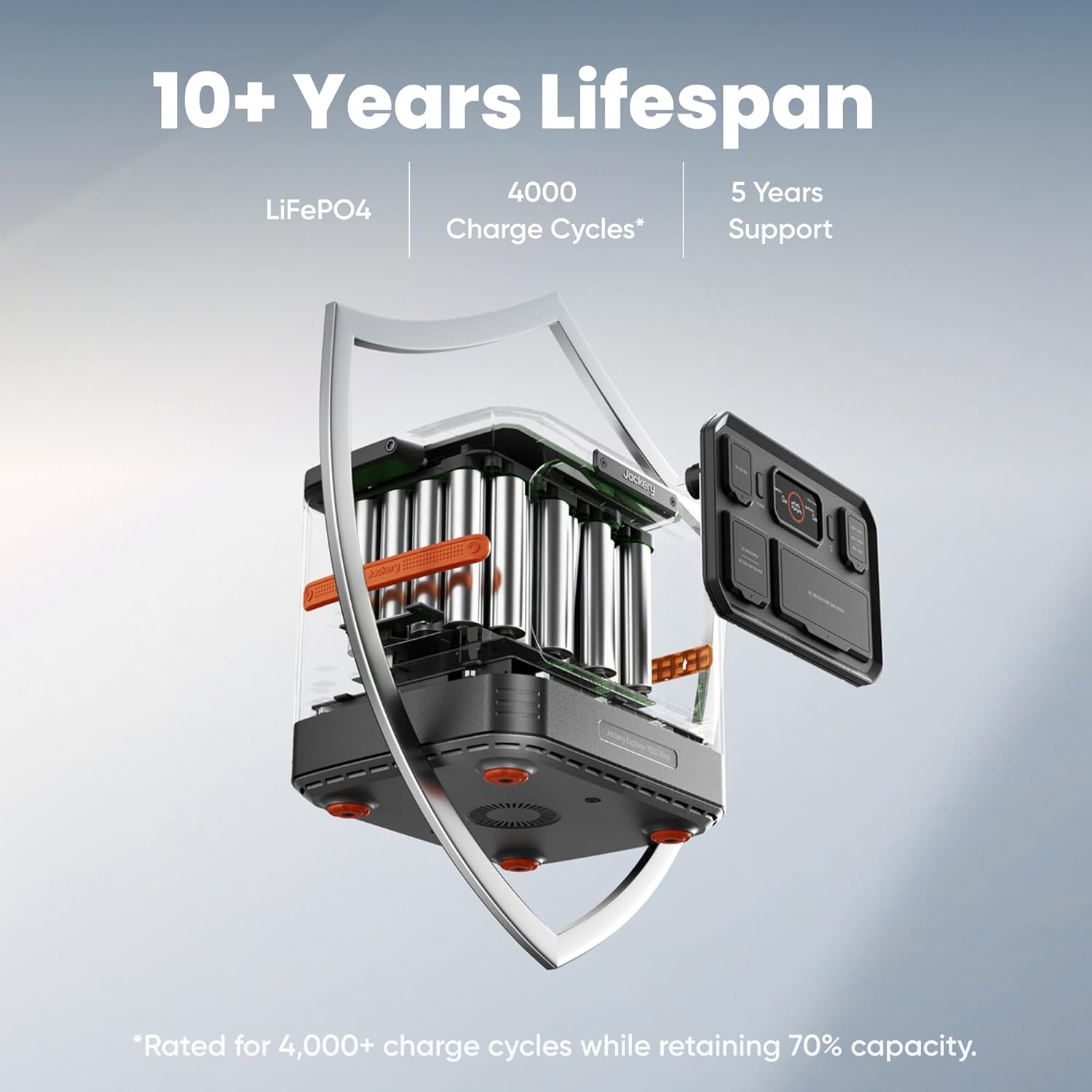

Imatge 4: Un intern view highlighting the LiFePO4 battery cells, emphasizing its 10+ year lifespan with over 4,000 charge cycles to 70% capacity.

Imatge 5: A user easily carrying the Explorer 1500 Ultra, demonstrating its compact and lightweight design (50% smaller, 53% lighter than comparable models).

Imatge 6: An illustration of the detachable and washable cooling metal base, designed for efficient heat dissipation and easy maintenance.

Imatge 7: The power station shown in both snowy and desert conditions, emphasizing its smart thermal protection for operation between 5°F and 113°F.

Configuració

Càrrega inicial

Before first use, fully charge your Jackery Explorer 1500 Ultra. Use the included AC Charging Cable for the fastest charge, reaching full capacity in approximately 1.5 hours.

Opcions de càrrega

• Presa de corrent de paret: Connect the AC Charging Cable to the AC input port and a wall outlet.
• Panells solars: Connect compatible solar panels (up to 800W Max) to the DC input ports. Full charge can be achieved in as fast as 2.5 hours with optimal sunlight.
• Vehicle Alternator: Charge via your vehicle's 12V outlet using a compatible car charger (sold separately) in approximately 3 hours.

Port Overview

• Sortida de CA: Three 1800W Pure Sine Wave AC outlets (3600W peak for 5 seconds).
• Sortida USB: Two USB-C ports (30W, 100W) and one USB-A port (18W).
• Sortida de corrent continu: One DC 12V 10A port.

Instruccions de funcionament

Encès/Apagat

Press the 'POWER' button to turn the unit on or off. The digital display will illuminate, showing battery status and output information.

Using Outputs

• Preses de CA: Press the 'AC' button to activate the AC output. Plug in your devices. Press again to turn off.
• DC/USB Ports: These ports are typically active when the unit is powered on. Connect your devices to the appropriate USB-C, USB-A, or DC 12V ports.

Pantalla digital

The display provides real-time information including input/output wattage, per cent de la bateriatage, and estimated remaining run/charge time. This information adjusts dynamically as devices are connected or disconnected.

Protecció contra l'aigua i la pols

Ensure all port covers are securely closed when not in use, especially in dusty or wet conditions, to maintain the IP65 rating and protect internal components.

Manteniment

• Emmagatzematge: Recharge the unit every 3 months to keep the battery power above 50% if not in regular use. Store in a dry, cool place.
• Durada de la bateria: For optimal battery longevity, avoid discharging below 15% frequently.
• Temperatura: Operate and store the unit within the recommended temperature range of 5°F to 113°F (charging 32°F to 113°F).
• Neteja: The removable metal base can be detached and washed for cleaning. Ensure the unit is off and disconnected from all power sources before cleaning.

Resolució de problemes

• Sense potència de sortida: Check if the unit is powered on and the specific output (AC/DC) is activated. Ensure cables are securely connected.
• Problemes de càrrega: Verify power source is active. For solar charging, ensure panels are in direct sunlight and correctly connected. Check for error messages on the display.
• Protecció de sobrecàrrega: If the unit shuts down, it may be due to an overload. Disconnect high-power devices and restart.
• Connectivitat de l'aplicació: Ensure Bluetooth and Wi-Fi are enabled on your mobile device and the Jackery app is up to date.
• For detailed troubleshooting or error codes, refer to the comprehensive user manual included with your product or visit the official Jackery support weblloc.

Especificacions

Vídeos oficials de productes

Garantia i suport

The Jackery Explorer 1500 Ultra includes a worry-free 5-year warranty (3-year standard + 2-year extension upon registration) to protect your investment. For support, please refer to the contact information provided in your product packaging or visit the official Jackery support weblloc.
