Medela Harmony Manual Breast Pump Instruction Manual

Introducció

The Medela Harmony Manual Breast Pump is designed for mothers who require occasional milk expression. Its portable and lightweight design makes it ideal for use at home, work, or while traveling. Featuring Medela's patented 2-Phase Expression Technology, this pump mimics a baby's natural nursing rhythm to ensure efficient and comfortable milk removal.

This manual provides comprehensive instructions for the safe and effective use, assembly, cleaning, and maintenance of your Medela Harmony Breast Pump.

Producte acabatview

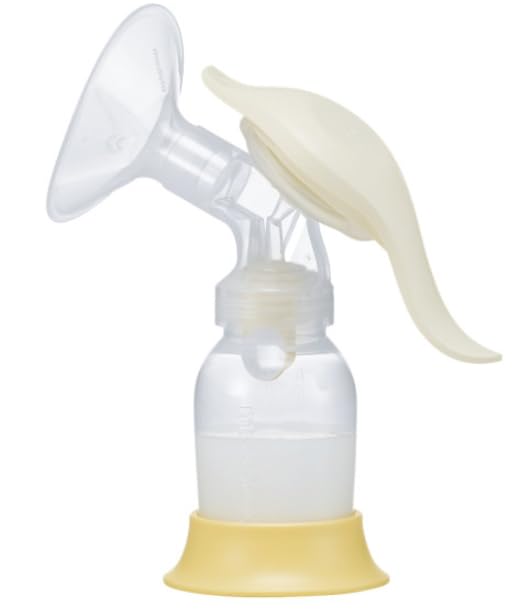

Figura 1: Assembled Medela Harmony Manual Breast Pump. This image shows the complete pump unit, including the breast shield, connector, handle, and collection bottle with a stand.

The Medela Harmony Manual Breast Pump is a compact and easy-to-use device. It consists of several key components designed for optimal performance and hygiene.

Característiques principals:

• Tecnologia d'expressió en 2 fases: Mimics a baby's natural sucking rhythm for efficient milk flow.
• Ergonomic Swivel Handle: Provides comfortable and easy operation, allowing for adjustable pumping rhythm.
• Portàtil i lleuger: Ideal for discreet transport and use on the go.
• Fàcil de netejar: Components are designed for simple disassembly and cleaning.
• Materials sense BPA: All parts that come into contact with breast milk are made without BPA.

Components inclosos:

• 1 Harmony manual pump mechanism
• 1 PersonalFit breastshield (24mm, medium)
• 2 5 oz (150 ml) breastmilk bottles
• 2 Bottle lids
• 1 Travel cap
• 1 Bottle stand
• Instruccions d'ús
• Breastfeeding Information Guide

Muntatge i muntatge

Before first use, and after each use, all parts that come into contact with breast milk must be cleaned and sanitized. Refer to the "Maintenance and Cleaning" section for detailed instructions.

Passos de muntatge:

1. Assegureu-vos que tots els components estiguin nets i secs.
2. Attach the valve membrane to the valve head.
3. Insert the valve head into the breast shield connector.
4. Screw the breast shield connector onto the breast milk collection bottle.
5. Attach the handle to the pump mechanism, ensuring it clicks securely into place.
6. Connect the assembled breast shield and bottle to the pump mechanism.

Figura 2: Disassembled Medela Harmony Manual Breast Pump components. This image illustrates the individual parts of the pump, highlighting its modular design for easy cleaning and assembly.

For a visual guide on assembly and disassembly, please refer to the product video below.

Instruccions de funcionament

The Medela Harmony utilizes 2-Phase Expression Technology, which mimics a baby's natural feeding pattern.

1. Stimulation Phase:

• Position the breast shield centrally on your breast.
• Begin pumping with the shorter side of the handle. This creates a faster, lighter suction to stimulate milk flow, similar to how a baby first latches.
• Pump until milk begins to flow consistently (let-down).

2. Expression Phase:

• Once milk flow is established, switch to the longer side of the handle. This provides a slower, stronger suction to efficiently remove milk.
• Adjust the pumping rhythm and suction strength by varying the pressure and release of the handle to your comfort level.
• Continue pumping until your breast feels empty or milk flow significantly slows.

The ergonomic swivel handle allows for comfortable pumping from various angles. The amount of milk expressed can be monitored directly on the collection bottle, which features clear measurement markings.

Manteniment i Neteja

Una neteja i un manteniment adequats són crucials per a la higiene i la longevitat del teu extractor de llet.

Després de cada ús:

1. Desmuntar: Carefully separate all parts that came into contact with breast milk (breast shield, connector, valve head, valve membrane, bottle, and cap).
2. Esbandida: Rinse all separated parts with cold water immediately to remove milk residue.
3. Rentar: Wash parts in warm, soapy water using a mild dish soap. Use a clean brush dedicated for pump parts.
4. Esbandida bé: Esbandiu totes les parts bé amb aigua neta.
5. Assecat a l'aire: Place parts on a clean paper towel or drying rack and allow them to air dry completely. Do not use a cloth towel to dry, as this can transfer germs.

Sanitizing (Once Daily):

• Ebullició: Place disassembled, cleaned parts in a pot of boiling water for 5 minutes.
• Esterilització per vapor: Use a microwave steam sterilizer bag or a dedicated electric steam sterilizer according to the manufacturer's instructions.

Important: The Medela Harmony Manual Breast Pump is no apte per a rentaplats. Hand washing and sanitizing are recommended to maintain product integrity and hygiene.

Resolució de problemes

If you encounter issues with your Medela Harmony Manual Breast Pump, consider the following common solutions:

• Succió baixa o nul·la:
  • Check that the valve membrane is securely attached to the valve head and is not damaged or torn.
  • Ensure all pump parts are correctly assembled and tightly connected, creating a proper seal.
  • Verify the breast shield is properly centered and sealed against your breast.
• Discomfort During Pumping:
  • Adjust the pumping rhythm and suction strength using the handle.
  • Ensure the breast shield size is appropriate for your nipple. An incorrect size can cause discomfort or inefficient pumping.
• Milk Not Flowing:
  • Ensure you are in a relaxed environment. Stress can inhibit milk let-down.
  • Try massaging your breast before and during pumping.
  • Confirm you are using the stimulation phase (shorter handle presses) to initiate let-down before switching to expression.

If problems persist, please contact Medela Customer Service for further assistance.

Especificacions

Garantia i Suport

For any questions, issues, or warranty claims regarding your Medela Harmony Manual Breast Pump, please contact Medela's customer service directly.

• Medela Customer Service (Toll-Free): 1-800-435-8316
• It is recommended to contact Medela before reaching out to your place of purchase for product-related inquiries.

Medela is committed to providing award-winning customer service and support for their products.
