The Yellow Jacket 25202 1/4" Blue Flexflow Adapter is designed to provide an easy retrofit solution for existing PLUS II hoses, incorporating ball valve capabilities. This adapter enhances flexibility and control in tight working areas, making it a valuable component for various industrial and scientific applications.

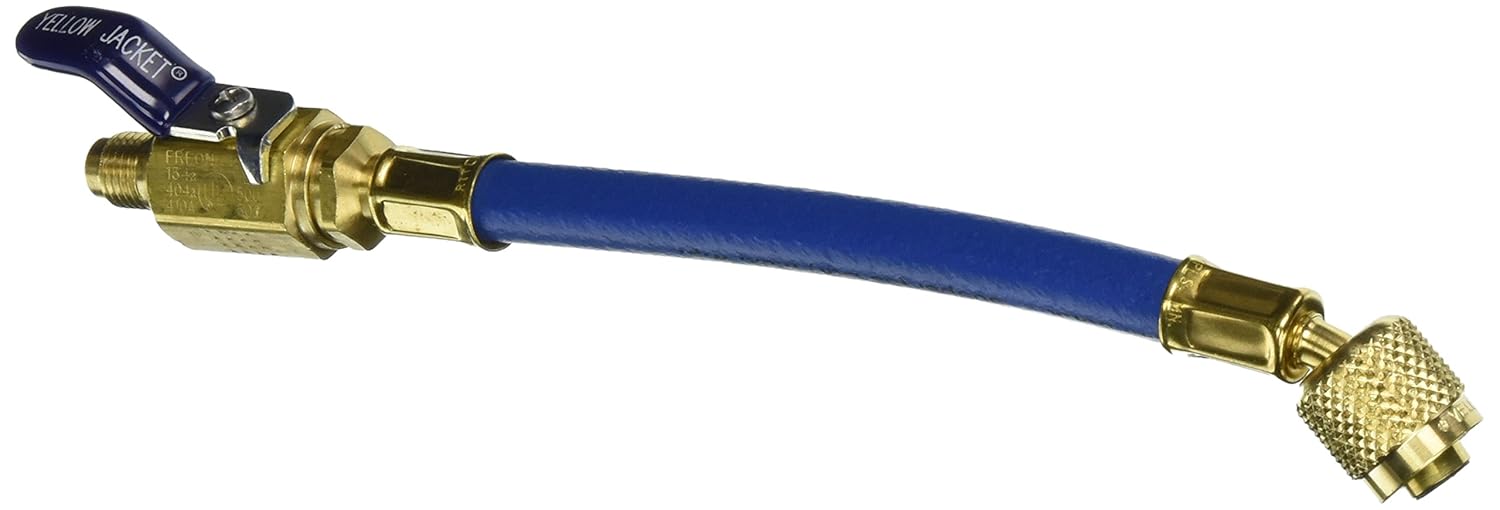

An image showing the Yellow Jacket 25202 1/4 inch Blue Flexflow Adapter. It features a brass body with a blue flexible hose and a blue handle for the ball valve. The adapter is designed for easy connection to existing PLUS II hoses, providing enhanced control and flexibility.
Característiques clau
- Mànega flexible: Features a flexible hose between the valve and fitting, allowing for easier handling and connection in confined or tight spaces.
- Ampli rang de temperatures de funcionament: Capable of operating effectively in temperatures from -20°F to 180°F (-28.8°C to 82.2°C).
- High Working Pressure: Designed to withstand a working pressure of up to 800 psi.
- Disseny compacte: Minimum bend radius of 8 inches (203 mm) for versatile positioning.
- Integrated Ball Valve: Provides quick and reliable shut-off capabilities.
Configuració i instal·lació
The Flexflow Adapter is designed for straightforward integration with existing PLUS II hoses. Ensure all connections are clean and free of debris before installation.
- Inspeccionar components: Before installation, visually inspect the adapter for any signs of damage or manufacturing defects.
- Prepare Hoses: Ensure the ends of your existing PLUS II hoses are clean and ready for connection.
- Adaptador de connexió: Thread the appropriate end of the Flexflow Adapter onto your existing hose connection. Hand-tighten first, then use a wrench to secure the connection firmly, but do not overtighten.
- Connexió al sistema: Attach the other end of the adapter to the system or component requiring the ball valve functionality. Again, ensure a secure, leak-free connection.
- Comprovació de fuites: After installation, perform a leak check according to standard industry practices for your specific application to ensure all connections are sealed properly.
Note: Always refer to the specific requirements of your system and local regulations for proper installation procedures.
Instruccions de funcionament
The integrated ball valve allows for quick and efficient control of fluid flow.
- Opening the Valve: To allow flow through the adapter, rotate the blue handle until it is aligned parallel with the direction of the hose.
- Tancament de la vàlvula: To stop flow, rotate the blue handle 90 degrees so it is perpendicular to the direction of the hose.
Ensure the valve is fully open or fully closed for optimal performance and to prevent premature wear.
Manteniment
Regular maintenance ensures the longevity and reliable performance of your Flexflow Adapter.
- Neteja: Netegeu periòdicament l'exterior de l'adaptador amb un drap suau i sec.amp tela. Eviteu productes químics aggressivs que puguin danyar els materials.
- Inspecció: Regularly inspect the hose and fittings for any signs of wear, cracks, or damage. Check for any leaks around the connections.
- Emmagatzematge: When not in use, store the adapter in a clean, dry environment, away from extreme temperatures and direct sunlight.
If any damage is observed, replace the adapter immediately to prevent system failure or safety hazards.
Resolució de problemes
This section addresses common issues you might encounter with the Flexflow Adapter.
| Problema | Causa possible | Solució |
|---|---|---|
| Fuita a les connexions | Loose connections, damaged O-rings/seals, debris in threads. | Tighten connections. Inspect and replace O-rings/seals if damaged. Clean threads thoroughly. |
| Difficulty operating valve handle | Internal debris, wear, or extreme temperature exposure. | Ensure valve is clean. If stiffness persists, the adapter may need replacement. |
| Reduced flow through adapter | Valve not fully open, internal blockage. | Ensure valve handle is fully parallel to the hose. Disconnect and inspect for internal obstructions. |
For issues not listed here or if solutions do not resolve the problem, contact Yellow Jacket customer support.
Especificacions
| Atribut | Detall |
|---|---|
| Número de model | 25202 |
| Dimensions del producte | 10 x 7.7 x 1.9 polzades |
| Pes de l'article | 0.35 lliures (5.6 unces) |
| Material | Brass, Durable Hose Material, Plastic (handle) |
| Color | Blue (Hose and Handle) |
| Pressió màxima de treball | 800 psi |
| Temperatura de funcionament | -20 °F a 180 °F (-28.8 °C a 82.2 °C) |
| Radi de flexió mínim | 8 polzades (203 mm) |
| Fabricant | Fotronic Corporation |
| ASIN | B009AX60Q6 |
| UPC | 686800252025 |
Garantia i Suport
Specific warranty information for the Yellow Jacket 25202 1/4" Blue Flexflow Adapter is typically provided at the point of purchase or within the product packaging. Please retain your proof of purchase for warranty claims.
For technical support, service, or detailed warranty inquiries, please contact the manufacturer, Fotronic Corporation, or an authorized Yellow Jacket distributor. Contact information can usually be found on the manufacturer's official weblloc web o a través del proveïdor del producte.
Note: Always use genuine Yellow Jacket replacement parts and accessories to ensure proper function and to maintain warranty validity.
