Introducció
This user manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Nivona NICR 820 Espresso Machine. Please read this manual thoroughly before using the appliance and retain it for future reference.
Instruccions de seguretat
Always observe the following safety precautions to prevent injury or damage to the appliance.
- Assegureu-vos que l'aparell estigui connectat a una presa de corrent amb connexió a terra i el volum correctetage (230 volts).
- No submergiu la màquina, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
- Mantenir els nens allunyats de l'aparell durant el funcionament.
- Unplug the machine before cleaning or when not in use for extended periods.
- Do not operate the machine if the power cord or plug is damaged. Contact authorized service personnel.
- Feu servir només aigua fresca i freda al dipòsit d'aigua.
- Never put anything other than coffee beans into the bean hopper.
Producte acabatview
The Nivona NICR 820 is a semi-automatic espresso machine designed for preparing various coffee and milk-based beverages. Key components include the water tank, bean hopper, brewing unit, drip tray, and milk frothing system.
The Nivona NICR 820 espresso machine, shown in black, with two freshly prepared latte macchiatos in clear glass cups. The machine features a digital display and control knob.

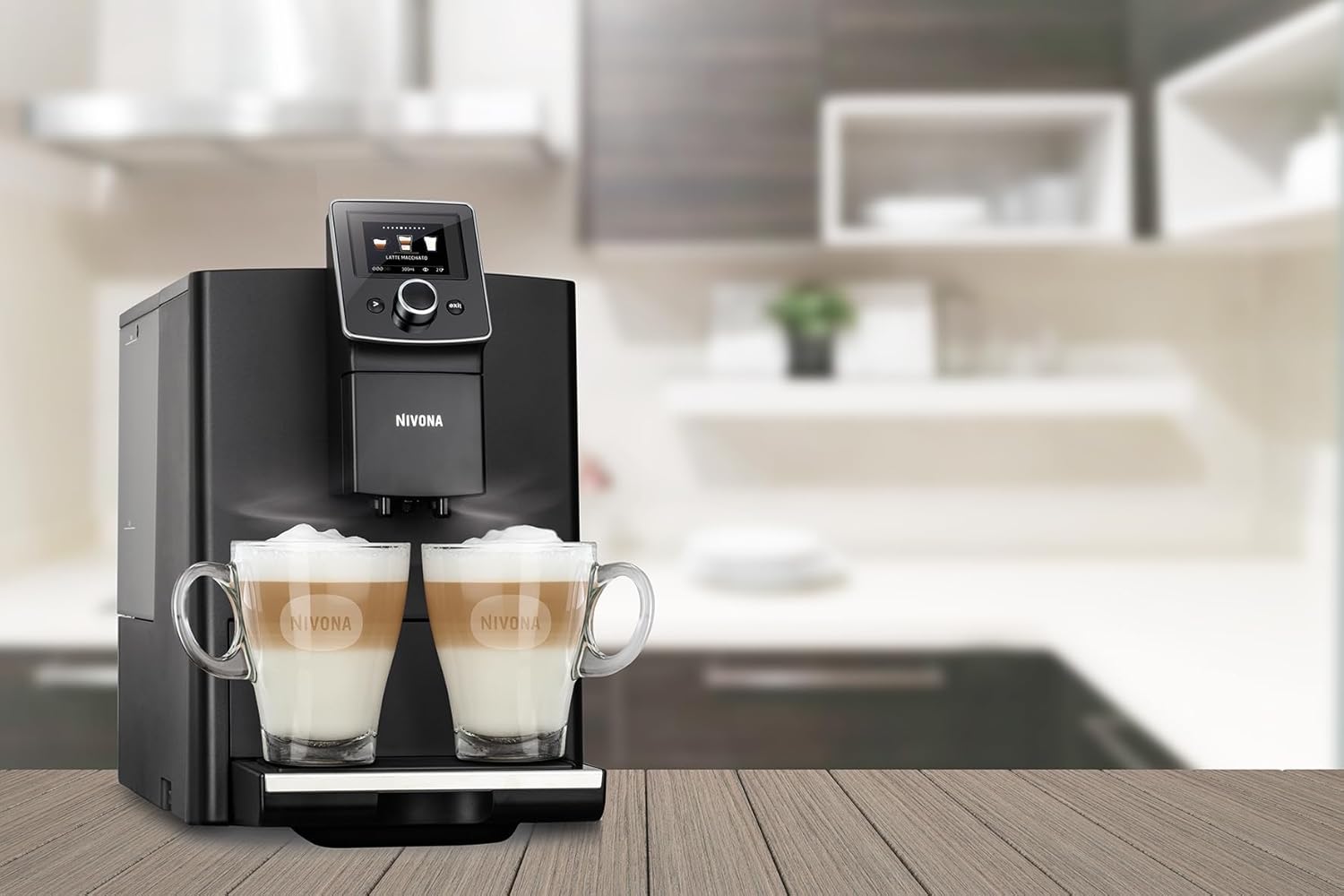

The Nivona NICR 820 espresso machine positioned on a wooden kitchen counter, with a blurred modern kitchen background. Two latte macchiatos are visible in front of the machine.
Configuració
- Desembalatge: Traieu amb cura tots els materials d'embalatge. Comproveu si hi ha hagut danys durant el transport.
- Neteja inicial: Abans del primer ús, netegeu el dipòsit d'aigua, la safata de degoteig i el recipient de cafè mòlt amb aigua tèbia i un detergent suau. Esbandiu-ho bé.
- Omplir el dipòsit d'aigua: Remove the water tank, fill it with fresh, cold tap water up to the MAX mark, and reinsert it securely.
- Omplir la tolva de grans: Open the lid of the bean hopper and fill it with whole coffee beans. Do not overfill.
- Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra adequada.
- First Use / System Rinse: Follow the on-screen instructions for the initial system rinse. This primes the system and cleans internal components.
Instruccions de funcionament
Tauler de control acabatview
The machine features an intuitive digital display and a central rotary knob for navigation and selection. Various buttons provide direct access to functions like brewing, milk frothing, and menu settings.
Making Coffee/Espresso
- Assegureu-vos que el dipòsit d'aigua estigui ple i que el contenidor de grans de cafè contingui grans de cafè.
- Col·loqueu una tassa sota el broc de cafè.
- Select your desired coffee beverage (e.g., Espresso, Coffee) from the display using the rotary knob.
- Adjust settings such as coffee strength, volume, and temperature if desired.
- Premeu el botó d'inici per començar el procés d'elaboració.
Preparing Milk-based Drinks
- Connect the milk hose to the machine and immerse the other end into a container of cold milk.
- Place a suitable cup under the combined coffee and milk spout.
- Select your desired milk-based beverage (e.g., Latte Macchiato, Cappuccino) from the display.
- Adjust settings as needed and press the start button. The machine will automatically froth the milk and brew the coffee.
Ajust de la configuració
The Nivona NICR 820 allows for customization of various parameters:
- Finesa de la mòlta: Adjust the grinder setting (usually located inside the bean hopper) to achieve desired coffee strength. Adjust only when the grinder is running.
- Intensitat del cafè: Select from pre-set levels on the display.
- Volum de cafè: Customize the amount of coffee dispensed per cup.
- Temperatura: Adjust the brewing temperature for optimal flavor extraction.
Manteniment i Neteja
La neteja i el manteniment regulars garanteixen un rendiment òptim i una llarga durada de la teva màquina d'espresso.
Neteja diària
- Safata de degoteig i contenidor de cafè mòlt: Buidar i esbandir diàriament.
- Sistema de llet: Perform the automatic milk system rinse after each milk preparation.
Brewing Unit Cleaning
The brewing unit should be removed and rinsed under running water weekly. Refer to the display for instructions on how to remove it safely.
Descalcificació
The machine will prompt you when descaling is required. Use Nivona descaling solution and follow the on-screen instructions precisely. Descaling removes mineral deposits that can affect performance and taste.
Substitució del filtre d'aigua
If using a water filter, replace it approximately every two months or as indicated by the machine. This helps reduce limescale buildup and improves water quality.
Resolució de problemes
A continuació es mostren problemes comuns i les seves possibles solucions.
| Problema | Causa possible | Solució |
|---|---|---|
| No s'ha repartit cafè | Water tank empty, bean hopper empty, brewing unit blocked. | Fill water tank/bean hopper. Clean brewing unit. |
| El cafè és massa feble | Grind too coarse, insufficient coffee strength setting. | Adjust grind finer, increase coffee strength setting. |
| La llet no escuma correctament | Milk system dirty, milk too warm, incorrect milk type. | Clean milk system. Use cold, fresh milk. Try different milk fat content. |
| Missatge d'error a la pantalla | Problema intern específic. | Refer to the specific error code on the display and consult the full manual or Nivona support. |
If the problem persists after attempting these solutions, please contact Nivona customer support.
Especificacions tècniques
- Model: NICR 820
- Marca: Nivona
- Capacitat: 1.8 litres (dipòsit d'aigua)
- Wattage: 1465 watts
- Voltage: 230 Volts
- Dimensions del producte: 15.35 x 9.06 x 5.51 polzades
- Pes de l'article: 24 lliures (10.92 quilograms)
- Trituradora integrada: Sí
Garantia i assistència al client
Your Nivona NICR 820 Espresso Machine comes with a manufacturer's warranty. For detailed information regarding warranty terms, registration, or to obtain customer support, please refer to the warranty card included with your product or visit the official Nivona website. When contacting support, please have your model number (NICR 820) and purchase information readily available.
