NIIMBOT D110 Label Maker Instruction Manual

1. Introducció

The NIIMBOT D110 Label Maker is a portable, wireless label printer designed for efficient organization in office, home, and school environments. This device connects to your smartphone via Bluetooth, offering a wide range of templates and customization options through its dedicated application. It utilizes thermal printing technology, eliminating the need for ink or toner, and features a rechargeable battery for convenience.

Figure 1: NIIMBOT D110 Label Maker. This image shows the compact blue label maker with a roll of white labels, highlighting its portable design.

Les característiques clau inclouen:

• Wireless Bluetooth connectivity for smart device integration.
• Support for various texts, numbers, graphics, symbols, logos, barcodes, and QR codes.
• Intelligent recognition of voices and pictures for easy label creation.
• Rechargeable battery providing up to 2 months of use on a single charge.
• BPA-Free Direct Thermal Technology, requiring no ink or toner.
• High-speed chips and 203 DPI for clear, high-definition printing.

2. Configuració

2.1. Contingut del paquet

Abans de començar, assegureu-vos que tots els components estiguin presents al paquet:

• NIIMBOT D110 Label Maker
• Label Tape Roll
• Cable tipus C
• Manual d'usuari / Guia d'inici ràpid
• Caixa d'embalatge

Figure 2: Package Contents. This image displays the label maker, label tape, Type C cable, user manual, and packing box.

2.2. Càrrega del dispositiu

The NIIMBOT D110 Label Maker comes with a built-in rechargeable battery. Before first use, it is recommended to fully charge the device using the provided Type C cable. The indicator light will show charging status.

Figure 3: Charging the Label Maker. The image illustrates the label maker connected to a power source via its USB-C port, indicating its rechargeable nature.

2.3. Installing Label Paper

To install the label paper:

1. Open the paper cover by sliding the switch on the side of the device.
2. Insert the label roll into the compartment, ensuring the tip of the tape is facing upwards and extends slightly out of the machine.
3. Tanqueu la coberta del paper de manera segura.

Figure 4: Label Paper Installation. This image highlights the internal mechanism for label paper, including the RFID chip for automatic recognition.

2.4. Descàrrega i connexió de l'aplicació

The NIIMBOT D110 operates via a dedicated smartphone application. Follow these steps to get started:

1. Download the "NIIMBOT" app from your device's App Store (iOS) or Google Play Store (Android).
2. Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
3. Long press the power button on the label maker to turn it on. The blue indicator light will flash.
4. Open the NIIMBOT app and tap "Connect" to search for nearby printers.
5. Select your D110 printer from the list to establish a Bluetooth connection.

3. Instruccions de funcionament

3.1. Creació i impressió d'etiquetes

The NIIMBOT app provides a user-friendly interface for designing and printing labels:

1. Once connected, the app will automatically identify the template of the label paper in the printer.
2. Tap on the displayed label template to enter the editing page.
3. Use the various editing tools to add text, images, icons, barcodes, QR codes, and more. You can adjust font styles, sizes, alignment, and other properties.
4. After designing your label, tap the "Print" button.
5. Adjust the number of copies and print density as needed, then confirm to start printing.

Figure 5: Easy to Use for Beginners. This image shows a user creating labels on the NIIMBOT app, demonstrating its intuitive design interface.

3.2. Label Customization Options

The NIIMBOT app offers extensive customization:

• Text: Input custom text, numbers, and symbols.
• AI Design: Utilize intelligent recognition for voice and picture input.
• Image/Icon: Add pre-designed icons or import your own images.
• Codi de barres/codi QR: Generate and print various types of barcodes and QR codes.
• Plantilles: Access a library of multiple templates for different uses (e.g., kitchen, clothing, school, office).

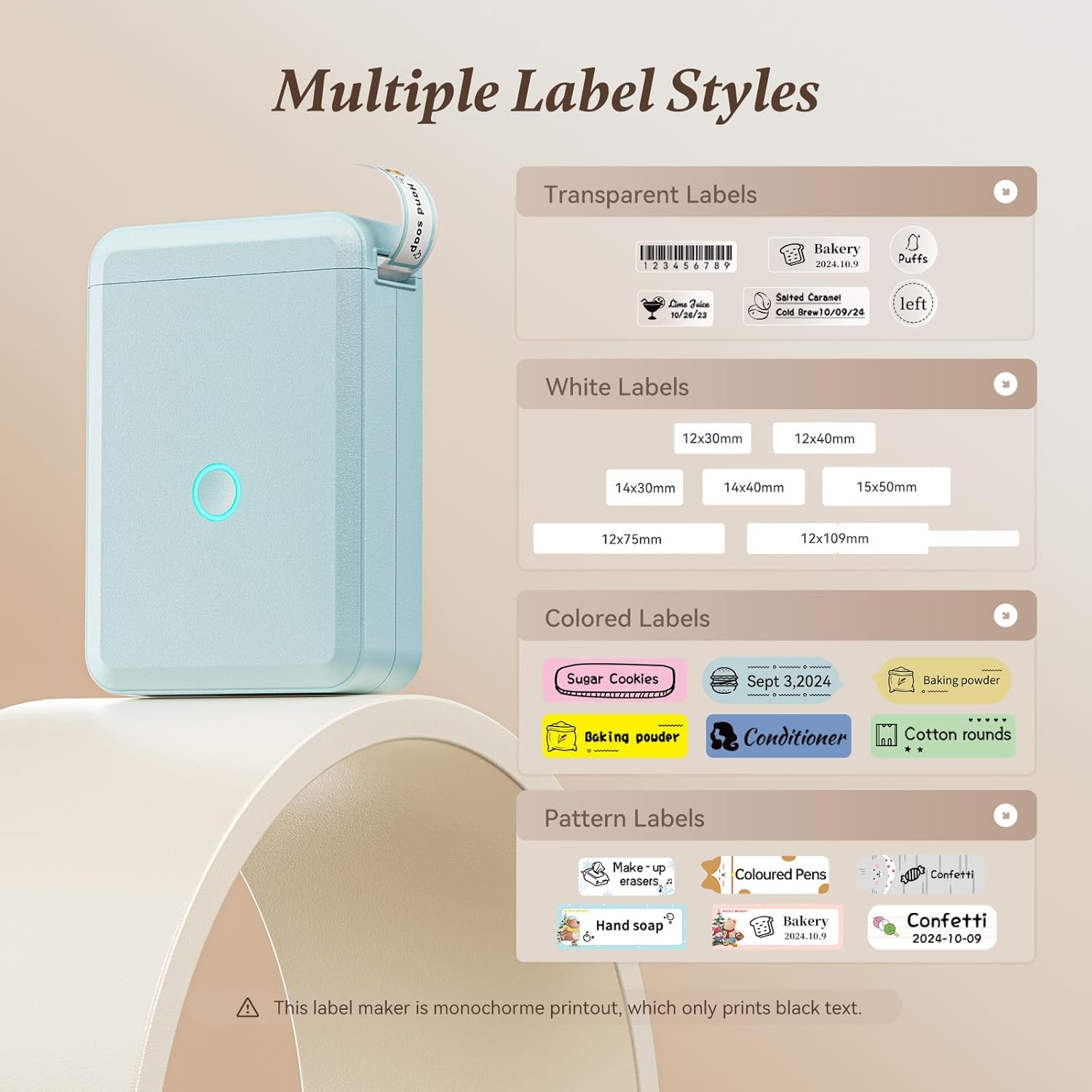

Figure 6: Multiple Label Styles. This image showcases the variety of label types supported, including transparent, white, colored, and pattern labels.

The labels are suitable for various applications:

• Organització de la llar: Kitchen storage, jar labels, classifying cosmetics, organizing clothes.
• Escola: Name labels, study notes, cable identification.
• Oficina: File classification, asset tagging, price tags for small businesses.

Figure 7: Best for Home Organization. This image illustrates practical uses of the label maker in kitchen storage, as name stickers, for jar labels, and organizing items in drawers.

4. Manteniment

4.1. Label Quality and Durability

The NIIMBOT D110 uses BPA-Free Direct Thermal Technology, meaning it does not require ink or toner. The labels are designed for durability:

• Impermeable: Labels maintain integrity when exposed to water.
• Oil-proof: Resistant to oil smudges and degradation.
• Sense residus: Les etiquetes es poden treure sense deixar residus enganxosos.

For optimal print quality and automatic recognition, always use genuine NIIMBOT label paper.

5. Solució De Problemes

5.1. Indicator Light Meanings

The indicator light on the device provides important status information:

• Blue light, slowly flashing: Mode d'espera.
• Blue light, fastly flashing: Carregant.
• Steady Blue light: Bluetooth connectat.
• Red light, slowly flashing: Battery low in Standby.
• Red light, fastly flashing: Battery low in Charging.
• Steady Red light: Battery low in Bluetooth connected.

Figure 8: Indicator Light Guide. This diagram explains the different states indicated by the blue and red lights on the label maker.

5.2. Problemes de connexió

If the printer is not connecting to the app:

• Ensure the label maker is powered on and the blue light is flashing or steady.
• Verifiqueu que el Bluetooth estigui habilitat al vostre telèfon intel·ligent.
• Check the battery level of the label maker using the indicator light.
• Restart both the label maker and the smartphone's Bluetooth, then try connecting again.

6. Especificacions

7. Garantia i Suport

For warranty information and customer support, please refer to the contact details provided in your product's packaging or visit the official NIIMBOT weblloc web. Conserveu el rebut de compra per a qualsevol reclamació de garantia.
